ABB EZ1001 Control and Automation Board - IS2 Enclosures
Part Number: EZ1001
Quick Summary
ABB EZ1001 is a control and automation board designed for IS2 enclosures in automation projects. Engineers often struggle with mounting heavy panels and achieving precise alignment on-site; this kit delivers a pre-assembled solution with a reinforced plinth and configurable depth options to streamline installation. It carries CE conformity, RoHS and REACH declarations, and robust ETIM/eClass classifications that support standardized procurement and data accuracy. The combination of IS2 enclosure compatibility and a pre-assembled mounting approach translates into reduced on-site labor, improved cabinet rigidity, and clearer compliance documentation—driving faster project delivery and lower lifecycle costs for industrial automation environments.
Product Information
Extended Description

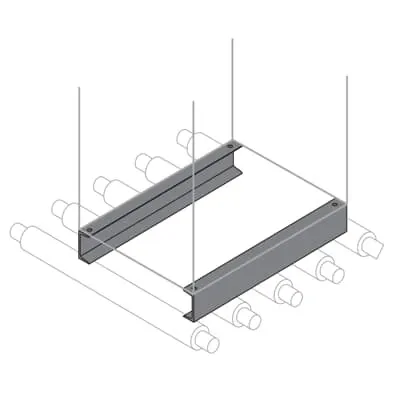

EZ1001 ABB: N°2 steel beams H=100mm
Sub-Function 3
Base front/back
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
7. Plinth
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B330
Material
Pickled steel sheet
Options Provided
Reinforced plinth H=100mm
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
120 mm
Product Net Height
110 mm
Product Net Depth / Length
1010 mm
Product Net Weight
21.3010 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
21.645 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.1 : 27182003
Object Classification Code
U
Standards
See code for structure
Feature is the mounting kit with pre-assembled configuration and reinforced plinth. Business impact is faster, less labor-intensive installation and improved cabinet stability in vibration-prone settings. Application: IS2 automation enclosures for control panels in manufacturing and process industries. The base/front-back option provides flexible mounting for space-constrained installations, while the pickled steel sheet construction enhances durability under industrial conditions. The product’s defined dimensions—120 mm width, 110 mm height, 1010 mm depth—with reference depths/heights (300–1000 mm; 1400–2200 mm) support scalable layouts and easy integration with existing rack systems. This enclosure team supports RoHS and REACH compliance, CE declaration, and ETIM/eClass alignment, reducing risk for compliance audits and easing cross-supplier integration. Compatibility with the IS2 Enclosures Technical Catalogue 2024 offers a proven, standardized installation path and predictable maintenance costs.
Get a Quick Quote for a ABB EZ1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EZ1001?
Enquire Now
FAQs
EZ1001 is specifically designed for IS2 Enclosures for Automation and aligns with ABB’s standard Control and Automation Board class. It features a pre-assembled mounting kit, a reinforced plinth, and base/front-back mounting options to fit common ABB enclosure layouts. This compatibility simplifies integration with existing ABB automation stacks and reduces engineering time during cabinet builds.
The unit presents a product net width of 120 mm, net height of 110 mm, and net depth of 1010 mm, with a product net weight of 21.3010 kg. These dimensions allow installation in mid-size IS2 cabinets and support modular depth choices (300–1000 mm). The weight and compact width help maintain cabinet rigidity without overstressing mounting structures, while the depth range aligns with standard IS2 reference depths.
EZ1001 is ideal for control and automation boards within IS2 enclosure systems used in manufacturing lines, packaging, and process automation. Its reinforced plinth and pre-assembled mounting kit reduce on-site assembly time, making it well-suited for environments requiring robust mechanical stability and regulatory traceability, such as food and beverage, automotive, and heavy industry automation cabinets.
EZ1001 includes CE Declaration of Conformity and RoHS compliance with a RoHS date of 20250108, along with REACH information and date. WEEE classification indicates the product is not in WEEE scope. ETIM classification EC000721 and eClass V11.1 27182003 support standardized data for procurement and cataloging.
EZ1001 ships with a documented mounting kit and IS2 compatibility guidance, backed by the IS2 Enclosures Technical Catalogue 2024. The pre-assembled design reduces field labor, shortens commissioning time, and lowers risk of misalignment, contributing to faster project delivery and lower lifecycle costs through improved reliability and easier maintenance.
