ABB EZ1201 Control and Automation Board - IS2 Enclosures
Part Number: EZ1201
Quick Summary
ABB EZ1201 Control and Automation Board enables compact, robust control panels for IS2 enclosure automation. This solution addresses the common challenge of integrating heavy automation boards within standardized enclosures, reducing on-site fitting time and compatibility risks. It complies with CE conformity, RoHS, and REACH declarations to support regulatory compliance across industries. The product’s reinforced plinth and pre-assembled mounting kit streamline installation, while its modular dimensions fit a range of IS2 configurations. For systems integrators and procurement teams, EZ1201 also aligns with ETIM classifications and ABB automation ecosystems, delivering reliable performance with clear maintenance pathways and long-term cost benefits.
Product Information
Extended Description

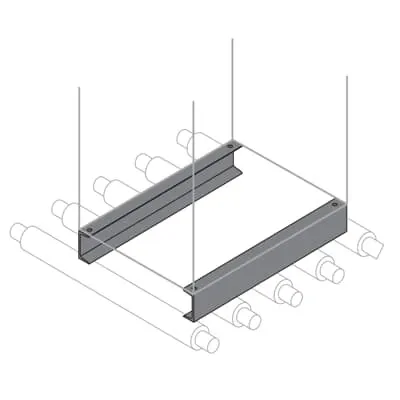

EZ1201 ABB: N°2 steel beams H=100mm
Sub-Function 3
Base front/back
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
7. Plinth
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B330
Material
Pickled steel sheet
Options Provided
Reinforced plinth H=100mm
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
130 mm
Product Net Height
60 mm
Product Net Depth / Length
1200 mm
Product Net Weight
25.740 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
26.000 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.1 : 27182003
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: The EZ1201 ships with a reinforced plinth (H=100mm) that increases base stability, enabling safer operation in vibration-heavy environments and reducing panel tilt or misalignment during transit. This stabilizes sensitive components, lowering MTBF concerns and maintenance frequency in heavy industrial automation applications. Application: control and automation panels in IS2 enclosures for automation. Feature → Business Impact → Application: Mounting Type is Kit | Pre assembled, enabling rapid field deployment and predictable installation timelines. Result: faster project delivery, reduced on-site labor, and fewer configuration errors. Application: new line integration and retrofit projects across manufacturing lines. Feature → Business Impact → Application: Reference Depth/Length options (300–1000 mm) and Reference Height options (1400–2200 mm) provide flexible sizing for custom control layouts without fabricated frames. Benefit: optimized space utilization, streamlined cabling, and improved thermal management. Application: scalable control rooms and industrial cabinets. Feature → Business Impact → Application: Material is Pickled steel sheet with RoHS and REACH compliance, delivering corrosion resistance and regulatory assurance. Benefit: longer enclosure life, easier regulatory audits, and lower total cost of ownership. Application: harsh factory floors and outdoor-rated installations where enclosure longevity matters. Feature → Business Impact → Application: Documentation and manuals (1STM604121R0006) plus IS2 Enclosures Technical Catalogue 2024 support fast start-up. Benefit: reduces commissioning risk, improves first-pass acceptance, and simplifies maintenance planning. Application: project handovers and compliant system rollouts. Feature → Business Impact → Application: Product is designed for IS2 Enclosures for Automation, with ETIM and eClass classifications ensuring supplier-side compatibility and procurement clarity. Benefit: simplified sourcing, clearer BOMs, and easier integration with automated procurement workflows. Application: enterprise-wide automation programs and standardized panel builds.
Get a Quick Quote for a ABB EZ1201
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EZ1201?
Enquire Now
FAQs
EZ1201 is specifically designed for IS2 Enclosures for Automation, featuring a pre-assembled mounting kit for rapid installation. The kit fits standard IS2 dimensions and supports reinforced plinth options, reducing mounting errors and integration time during panel builds.
The product offers a net width of 130 mm, net height of 60 mm, and net depth of 1200 mm, with a net weight of 25.740 kg. Packaging weight is listed at 26.000 kg, and the reinforced plinth adds stability for heavy-duty installations.
EZ1201 carries a CE Declaration of Conformity, with RoHS information dated 20250108 and a REACH declaration confirming no substances above 0.1 mass percentage. WEEE categorization notes the product is not within WEEE scope, supporting compliant disposal planning.
Installation resources include the 1STM604121R0006 manual and the IS2 Enclosures Technical Catalogue 2024. These documents provide wiring diagrams, mounting guidance, and best practices for fast and compliant commissioning.
EZ1201 delivers faster deployment via pre-assembled mounting and a kit-based approach, improved structural stability with a reinforced plinth, regulatory confidence through CE/RoHS/REACH, and scalable sizing to fit varied IS2 enclosure footprints, reducing risk and total cost of ownership.
