ABB EZ6001 Control and Automation Board - CE/IS2
Part Number: EZ6001
Quick Summary
ABB EZ6001 is a control and automation board designed for IS2 enclosure ecosystems in industrial automation. This module addresses the common challenge of integrating durable, pre-assembled control hardware within rigid cabinet footprints without complex field assembly. The solution delivers a reinforced plinth with options for mounting kit configurations, improving stability in demanding environments. It carries CE conformity, RoHS compliance, and a REACH declaration, ensuring regulatory peace of mind for compliant manufacturing. By aligning with IS2 Enclosures for Automation and the Control and Automation Board class, EZ6001 streamlines procurement and installation. This translates to reduced installation time, smaller BOMs, and predictable lifecycle costs, while enabling firms to scale automation with confidence and standardization.
Product Information
Extended Description

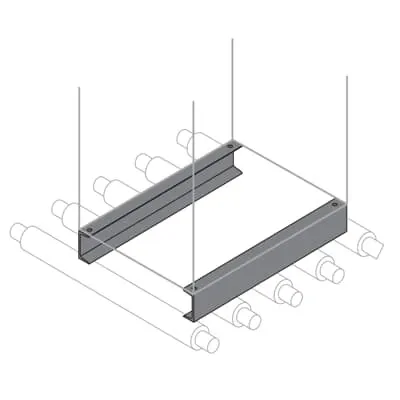

EZ6001 ABB: N°2 steel beams H=100mm
Sub-Function 3
Base front/back
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
7. Plinth
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B330
Material
Pickled steel sheet
Options Provided
Reinforced plinth H=100mm
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
116 mm
Product Net Height
116 mm
Product Net Depth / Length
612 mm
Product Net Weight
12.80 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
13.000 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.1 : 27182003
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: The EZ6001 ships with a reinforced plinth (H=100mm) and a pre-assembled mounting kit, delivering superior stability in vibration-prone automation cabinets, reducing field retrofit needs and maintenance costs; ideal for IS2 enclosure installations in automotive and process environments. Feature → Business Impact → Application: Pickled steel sheet construction provides corrosion resistance and long-term durability, supporting 24/7 operation in harsh factory floors while lowering replacement cycles for critical control hardware. Feature → Business Impact → Application: Product net dimensions of 116 mm width and height with a 612 mm reference depth enable tight packing within standard IS2 enclosures, speeding cabinet design and reducing enclosure footprint. Feature → Business Impact → Application: Compatible with reference depths from 300 to 1000 mm and a pre-assembled mounting approach makes installation fast and repeatable, supporting multi-line deployments and scalable automation programs. Feature → Business Impact → Application: Compliance with RoHS, REACH, and CE declarations lowers regulatory risk, simplifies audits, and supports sustainability goals across engineering, procurement, and production teams. Feature → Business Impact → Application: The kit’s modularity and documented manuals (1STM604121R0006) improve technician onboarding and reduce commissioning time, delivering measurable uptime gains and lower total cost of ownership.
Get a Quick Quote for a ABB EZ6001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EZ6001?
Enquire Now
FAQs
EZ6001 ships as a kit with a pre-assembled mounting arrangement and a reinforced plinth (H=100 mm), designed specifically for IS2 Enclosures for Automation. This combination enables quick, repeatable installations with minimal field fabrication, reducing commissioning time and rework in multi-bay automation cabinets.
Key specs include product net width 116 mm, net height 116 mm, and net depth 612 mm, with a reference depth set of 300–1000 mm and a reference height of 1400–2200 mm. The unit weighs 12.80 kg and uses pickled steel sheet material, supporting robust, durable installations in industrial environments.
Yes. EZ6001 is designed for IS2 Enclosures for Automation and is categorized under the Control and Automation Board product class. Its pre-assembled mounting kit and reinforced plinth make it well-suited for automation cabinets where reliability, space efficiency, and repeatable installations are critical.
EZ6001 carries CE conformity with a Declaration of Conformity IS2, RoHS information and dates, and REACH declarations. It is also aligned with WEEE considerations and ETIM/eClass classifications, helping you meet regulatory and sustainability requirements across markets.
The pickled steel sheet construction and reinforced plinth reduce wear and maintenance needs in harsh environments, contributing to longer service life. Pre-assembled mounting simplifies commissioning, lowering labor costs and downtime. Documentation, including the IS2 catalogue reference and installation manual, supports faster upgrades and scalable deployment across facilities.
