GD1520
Part Number: GD1520
Product Information
Extended Description

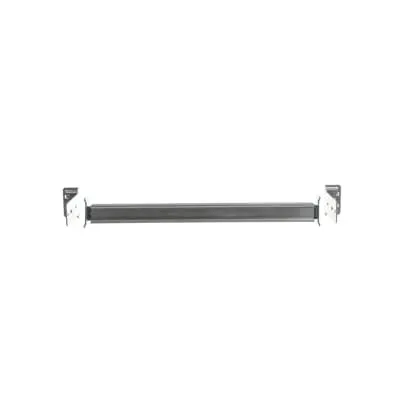

GD1520 ABB: DIN rail kit (alluminium) (24DIN) W=600mm
Suitable For
ArTu L Modular Structures | IS2 Enclosures for Automation
Suitable for Product Class
Cabinet | Control and Automation Board
Model Number
Special profile
Accessory Type
12. Modular apparatus
Mounting Type
Kit | Pre assembled
Shape
None
Surface Finishing
Untreated
Material
Aluminium
Options Provided
5. Din rail kit on back plate
RoHS Information
RoHS II declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20210420
REACH Declaration
REACh Regulation Enclosures - ABB S.p.A. Vittuone
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240429
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Environmental Information
1STC008001D0203
Product Net Width
460 mm
Product Net Height
150 mm
Product Net Depth / Length
110 mm
Product Net Weight
0.000 kg
Thickness
1 mm
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm
Package Level 1 Units
carton 1 piece
Package Level 1 Gross Weight
0.75 kg
Instructions and Manuals (Part 2)
ITSCE-604103-EN
Data Sheet, Technical Information
1STC008001D0203
Data Sheet, Technical Information (Part 2)
ArTu L Distribution switchboards
ETIM 8
EC001285 - Mounting rail
ETIM 9
EC001285 - Mounting rail
eClass
V11.0 : 27400602
Object Classification Code
U
