ABB GHC0110003R0001 PTC Temperature Sensor - DIN44081
Part Number: GHC0110003R0001
Quick Summary
ABB GHC0110003R0001 PTC temperature sensor is designed for motor protection in industrial drives. Operators often contend with sensor drift and slow response in harsh environments, risking motor damage and unplanned downtime. The device supports RoHS and REACH declarations, CMRT reporting, and ETIM/EClass classifications for compliant procurement. Its compact 4x4 mm footprint and 70 °C measuring range enable space-saving installation and precise monitoring, while straightforward integration with thermistor motor protection relays reduces wiring complexity and maintenance costs. In practice, this sensor helps OEMs and maintenance teams meet reliability targets and extend equipment life.
Product Information
Extended Description

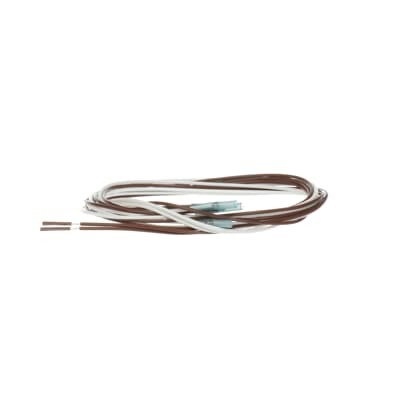

GHC0110003R0001 ABB: Temperature sensor C011-70, in accordance to DIN44081, white - brown, 70°C
EAN
4013614085932
Minimum Order Quantity
1 piece
Customs Tariff Number
85332100
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Measuring and Monitoring Relays
Instructions and Manuals
Instruction Sheet / Manual - C011 Temperature sensors for thermistor motor protection relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
4 mm
Product Net Height
4 mm
Product Net Depth / Length
520 mm
Product Net Weight
0.011 kg
Function
PTC temperature sensor
Sub-Function
PTC sensor (single) acc. to DIN44081
Measuring Range
70 °C
Time Range
none
Output
none
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
REACh Info for Electronic Relays and Controls
Package Level 1 Units
bag 1 piece
Package Level 1 Width
103 mm
Package Level 1 Depth / Length
170 mm
Package Level 1 Height
4 mm
Package Level 1 Gross Weight
0.018 kg
Package Level 1 EAN
4013614085932
Object Classification Code
B
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
E-Number (Norway)
4185931
Feature: PTC temperature sensor with DIN44081 compliance provides stable thermistor feedback for motor protection relays. Benefit: reduces false trips and improves safety in demanding environments. Application: ideal for C011-70 style motor protection circuits in ABB drives, delivering predictable performance across temperature fluctuations. | Feature: 70 °C measuring range enables early fault detection and threshold-based protection. Benefit: minimizes unplanned downtime by triggering protective actions before motor damage occurs. Application: suitable for applications where motor winding temperatures approach critical limits. | Feature: RoHS and REACH declarations with CMRT reporting and ETIM/EClass alignment. Benefit: simplifies procurement, reduces compliance risk, and streamlines supplier onboarding. Application: supports compliant sourcing for global manufacturing and regulated markets. | Feature: Compact 4x4 mm form factor with a long 520 mm depth/length footprint (where applicable) and lightweight construction. Benefit: enables easy installation in tight control panels and minimizes space impact. Application: ideal for retrofits and OEM assemblies in space-constrained enclosures. | Feature: Data sheets, manuals, CAD drawings, and cross-references available. Benefit: accelerates design-in, reduces engineering time, and ensures accurate integration. Application: supports quick validation during BOM creation and engineering change management.
Get a Quick Quote for a ABB GHC0110003R0001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB GHC0110003R0001?
Enquire Now
FAQs
This device is a PTC temperature sensor designed for thermistor-based motor protection relays. With a 70 °C measuring range and DIN44081 compliance, it provides accurate monitoring and reduces the risk of overheated motors in drives and motion control systems.
The sensor is designed for straightforward integration with thermistor inputs on motor protection relays. Its DIN44081 compatibility and compact footprint simplify mounting in tight control panels, while the absence of an active output minimizes wiring complexity.
Yes. It carries RoHS and REACH declarations along with CMRT reporting, helping you meet regulatory requirements and ensuring alignment with modern sustainability and supplier qualification programs.
Comprehensive resources include the data sheet, technical information, and manuals, plus CAD dimensional drawings (2D and 3D). These materials support fast design-in and accurate integration into assemblies.
Key factors include a minimum order quantity of 1 piece, packaging as bag 1 piece, and EAN 4013614085932. The device is classified under ETIM EC002498 and eClass 27371392, aiding supplier consolidation and cataloging in enterprise procurement systems.
