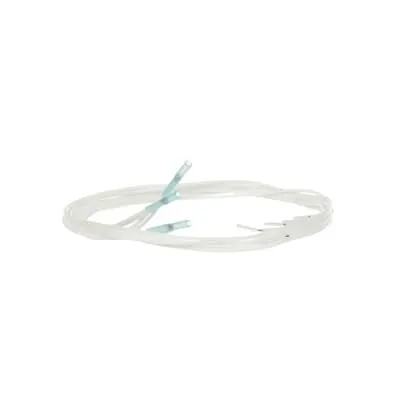

ABB GHC0110003R0002 PTC Temperature Sensor - DIN44081 80°C
Part Number: GHC0110003R0002
Quick Summary
PTC temperature sensor ABB GHC0110003R0002 provides reliable motor protection for industrial drives. This compact device helps prevent costly downtime by accurately monitoring winding temperatures and triggering protection before a fault occurs. It is DIN44081-compliant and carries RoHS, REACH and CMRT declarations, aligning with global safety, environmental, and supply-chain standards. For design engineers and maintenance teams, the combination of small footprint and long lead (520 mm) simplifies installation and reduces wiring complexity, while ensuring consistent performance in harsh industrial environments. Integrate with ABB protection schemes to improve asset uptime and reduce total cost of ownership.
Product Information
Extended Description
GHC0110003R0002 ABB: Temperature sensor C011-80, in accordance to DIN44081, white - white, 80°C
EAN
4013614085949
Minimum Order Quantity
1 piece
Customs Tariff Number
85332100
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Measuring and Monitoring Relays
Instructions and Manuals
Instruction Sheet / Manual - C011 Temperature sensors for thermistor motor protection relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
4 mm
Product Net Height
4 mm
Product Net Depth / Length
520 mm
Product Net Weight
0.011 kg
Function
PTC temperature sensor
Sub-Function
PTC sensor (single) acc. to DIN44081
Measuring Range
80 °C
Time Range
none
Output
none
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
REACh Info for Electronic Relays and Controls
Package Level 1 Units
bag 1 piece
Package Level 1 Width
103 mm
Package Level 1 Depth / Length
170 mm
Package Level 1 Height
4 mm
Package Level 1 Gross Weight
0.018 kg
Package Level 1 EAN
4013614085949
Object Classification Code
B
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
E-Number (Norway)
4185932
Feature: DIN44081-compliant PTC sensor with 80°C measuring range → Business Impact: Standardized protection interfacing with low-voltage motor protection relays, reducing integration risk and supporting compliant designs → Application: Motor protection in drives and panel cabinets. Feature: 4x4 mm compact form factor with 520 mm lead → Business Impact: Easier mechanical fit and flexible routing, lowering installation time and labor costs → Application: Space-constrained control panels and OEM assemblies. Feature: RoHS and REACH declarations plus CMRT → Business Impact: Regulatory compliance reduces supply-chain risk and contamination concerns, enabling global deployments → Application: International manufacturing lines and cross-border sourcing. Feature: Data sheet, CAD drawings and manuals available → Business Impact: Accelerates engineering validation and CAD-based integration, cutting time-to-production → Application: New machine builds and retrofits requiring rapid documentation. Feature: 0.011 kg weight and minimal footprint → Business Impact: Lightweight sensor reduces inertia in rotating systems and eases mounting in confined spaces → Application: Compact motor protection solutions in automation cabinets.
Get a Quick Quote for a ABB GHC0110003R0002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB GHC0110003R0002?
Enquire Now
FAQs
This sensor is DIN44081-compliant and features a compact 4x4 mm body with a 520 mm lead. It has no electrical output stage and is designed to plug into thermistor-based motor protection relays or control cabinets that support DIN44081 sensors, simplifying integration in standard low-voltage automation schemes.
Measuring range is 80 °C, using a PTC thermistor element for gradual, predictable resistance changes. The device weighs 0.011 kg and presents a small footprint with a lead length of 520 mm, which translates to lower installation effort and improved response times in motor protection circuits, contributing to higher overall equipment reliability.
Yes. The product carries RoHS Declaration of conformity and REACH information, along with CMRT documentation. This supports compliance with European and global environmental regulations, minimizes supply-chain risk, and eases integration into projects requiring regulated materials, especially in consumer-grade and industrial equipment.
Ideal for motor protection in AC motors connected to protection relays and low-voltage switchgear. Its DIN44081 alignment, 80 °C measurement, and compact form factor make it suitable for panel-mounted protection, OEM machinery, and retrofits where reliable temperature monitoring and quick installation are priorities.
By providing early overtemperature detection, it reduces unplanned downtime and extends motor life. Its easy integration and documentation support faster commissioning, lowering labor costs during installation and maintenance while ensuring compliance with RoHS/REACH requirements, leading to a lower total cost of ownership over the equipment lifecycle.
