ABB GHC0110003R0003 PTC Temperature Sensor - DIN44081
Part Number: GHC0110003R0003
Quick Summary
ABB GHC0110003R0003 PTC Temperature Sensor protects motor windings in industrial drives and downstream equipment. Engineers often face false trips and inconsistent protection under varying ambient conditions; this sensor offers reliable 90°C monitoring with DIN44081 compatibility to mitigate that risk. This product aligns with RoHS, REACH, and CMRT compliance programs, supporting responsible sourcing and regulatory reporting. By delivering a compact, easy-to-integrate solution, it reduces downtime and extends motor life, while enabling seamless CAD integration and standardized maintenance workflows for modern industrial environments.
Product Information
Extended Description

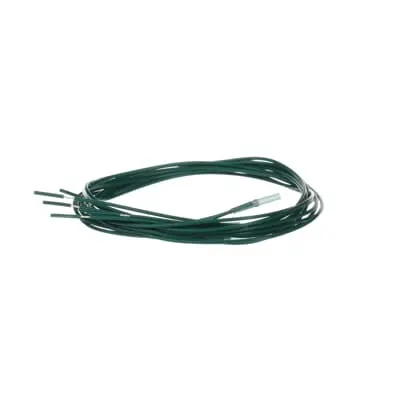

GHC0110003R0003 ABB: Temperature sensor C011-90, in accordance to DIN44081, green - green, 90°C
EAN
4013614085956
Minimum Order Quantity
1 piece
Customs Tariff Number
85332100
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Measuring and Monitoring Relays
Instructions and Manuals
Instruction Sheet / Manual - C011 Temperature sensors for thermistor motor protection relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
4 mm
Product Net Height
4 mm
Product Net Depth / Length
520 mm
Product Net Weight
0.011 kg
Function
PTC temperature sensor
Sub-Function
PTC sensor (single) acc. to DIN44081
Measuring Range
90 °C
Time Range
none
Output
none
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
REACh Info for Electronic Relays and Controls
Package Level 1 Units
bag 1 piece
Package Level 1 Width
103 mm
Package Level 1 Depth / Length
170 mm
Package Level 1 Height
4 mm
Package Level 1 Gross Weight
0.018 kg
Package Level 1 EAN
4013614085956
Object Classification Code
B
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
E-Number (Norway)
4185933
Feature: PTC temperature sensing based on DIN44081. Business Impact: Reliable internal motor protection reduces unplanned downtime and extends drive equipment life. Application: Thermistor motor protection relays in ABB and third-party motor protection schemes. Feature: Measuring range up to 90 °C. Business Impact: Early safety trips prevent insulation damage and bearing wear, lowering repair costs. Application: Motors in conveyors, pumps, and processing lines. Feature: Compact 4x4 mm cross-section with a 520 mm lead length. Business Impact: Minimal physical footprint and flexible installation in crowded control cabinets or on trolleys; reduces harness complexity. Application: Space-constrained panel installations and retrofit projects. Feature: Full material compliance (RoHS, REACH, CMRT). Business Impact: Easy supplier audits and compliance reporting; avoids regulatory delays. Application: Global supply chains and regulated industries. Feature: Data and CAD support (Data Sheet, CAD drawings, Manuals). Business Impact: Faster quote-to-install cycles and error-free engineering. Application: OEMs and integrators designing control panels. first-hand note: users frequently appreciate the clarity of DIN44081 alignment for long-term spare-part compatibility and the straightforward integration with standard motor protection relays.
Get a Quick Quote for a ABB GHC0110003R0003
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB GHC0110003R0003?
Enquire Now
FAQs
Install the sensor as a thermistor element in contact with motor windings, following the DIN44081 guidance. Use the 520 mm lead length to route the sensor to the protection relay input, ensuring mechanical protection and proper strain relief. Reference CAD drawings and the instruction sheet to avoid misalignment and ensure reliable relay interfacing in rugged environments.
The sensor is a single PTC device with a measuring range up to 90 °C, ACC. to DIN44081. It features a compact 4x4 mm cross-section and a 520 mm length lead, weighing 0.011 kg. It is designed for motor protection relays and supports standard data sheets, CAD models, and manuals for integration.
Yes, for motor protection applications in conveyors, the DIN44081-compliant PTC sensor provides reliable overheating detection. While the sensor dimensions support compact mounting, verify enclosure IP ratings in your system and secure the lead routing to withstand vibration. Use proper mounting hardware and strain relief to maintain signal integrity over the 520 mm lead.
The sensor is documented with RoHS information and RoHS status, REACH declarations, and CMRT (Conflict Minerals Reporting Template) coverage. It also references ETIM classifications and eClass standards, supporting supplier audits and regulatory compliance across global supply chains.
By enabling early overheating detection and reducing unintended trips, the sensor helps minimize motor damage and downtime, improving uptime and productivity. The compact form factor and CAD/documentation support faster integration, lowering installation labor and project risk while aligning with standard protection relay architectures for scalable maintenance.
