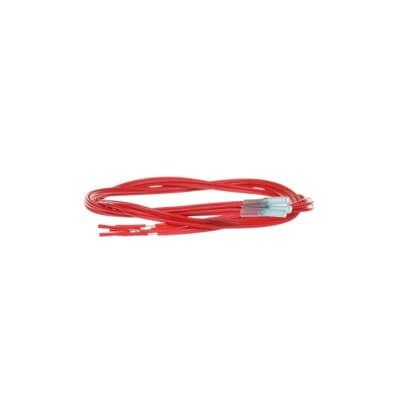

ABB GHC0110003R0004 PTC Temperature Sensor - DIN44081
Part Number: GHC0110003R0004
Quick Summary
The ABB GHC0110003R0004 PTC Temperature Sensor provides reliable motor protection by detecting overheating up to 100 °C. In demanding production environments, false alarms and delayed protection can cripple uptime and raise maintenance costs. The device is designed with DIN44081 compatibility and adheres to RoHS, REACH, and CMRT standards to ease compliance and supplier audits. This compact, 4 x 4 mm sensor offers straightforward installation, a long lead length, and predictable performance for ABB and compatible motor protection relays, supporting scalable protection across multiple machines. For engineers and procurement teams, it translates to fewer wiring surprises, faster commissioning, and a clear path to reliable, cost-efficient motor protection across diversified automation projects.
Product Information
Extended Description
GHC0110003R0004 ABB: Temperature sensor C011-100, in accordance to DIN44081, red - red, 100°C
EAN
4013614085963
Minimum Order Quantity
1 piece
Customs Tariff Number
85332100
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Measuring and Monitoring Relays
Instructions and Manuals
Instruction Sheet / Manual - C011 Temperature sensors for thermistor motor protection relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
4 mm
Product Net Height
4 mm
Product Net Depth / Length
520 mm
Product Net Weight
0.011 kg
Function
PTC temperature sensor
Sub-Function
PTC sensor (single) acc. to DIN44081
Measuring Range
100 °C
Time Range
none
Output
none
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
REACh Info for Electronic Relays and Controls
Package Level 1 Units
bag 1 piece
Package Level 1 Width
103 mm
Package Level 1 Depth / Length
170 mm
Package Level 1 Height
4 mm
Package Level 1 Gross Weight
0.018 kg
Package Level 1 EAN
4013614085963
Object Classification Code
B
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
E-Number (Norway)
4185913
PTC temperature sensing with a 100 °C measuring range enables precise overheating detection, reducing motor wear and unplanned downtime. For maintenance teams, this translates to fewer nuisance trips and longer mean time between failures in conveyors and pumps, especially where thermal protection is critical. Compact 4 x 4 mm footprint and a 520 mm lead length make integration seamless in tight control cabinets, reducing cabinet redesigns and accelerating commissioning. DIN44081 compatibility ensures a standard interface with protective relays, simplifying documentation and cross-brand compatibility, so engineers can source the sensor across multiple lines without re-design. RoHS, REACH, and CMRT compliance support regulatory and sustainability goals, providing procurement with consistent data and traceability. CAD data access and downloadable technical documents accelerate engineering workflows, enabling quick imports of 2D/3D data and reducing model-based errors in design.
Get a Quick Quote for a ABB GHC0110003R0004
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB GHC0110003R0004?
Enquire Now
FAQs
This PTC sensor features a compact 4 x 4 mm body and a 520 mm lead, designed for straightforward mounting in control cabinets. It is compatible with DIN44081-based protection relays and supports standard EAN identification (4013614085963). Use the 1 piece MOQ for scalable replacements and reference the CAD drawings for precise mounting in ABB or compatible relay architectures.
Measuring range is up to 100 °C, enabling timely overheating detection before motor damage occurs. There is no active output channel from the sensor itself; it is intended to feed into a protective relay. The compact footprint and DIN44081 compatibility ensure predictable behavior within standardized protection schemes, reducing false trips and improving diagnostic clarity.
Yes. The sensor’s 100 °C monitoring capability and robust DIN44081 alignment make it well-suited for motor protection in conveyors, pumps, and processing equipment. Its small form factor aids integration in cramped control panels, while the long lead length supports versatile routing in machine layouts, improving maintenance access and serviceability.
The device carries RoHS and REACH declarations and CMRT data for responsible sourcing. It adheres to DIN44081 for standardized sensor usage with thermistor motor protection relays. The product also aligns with ETIM and eClass classifications, helping ensure consistent vendor data, procurement workflows, and regulatory audits.
By reducing nuisance trips through precise 100 °C monitoring and providing reliable, standards-based integration, the sensor lowers maintenance interventions and extends motor life. The 1-piece MOQ and availability of CAD/technical downloads shorten design cycles and commissioning time, delivering a faster return on investment for automation projects.
