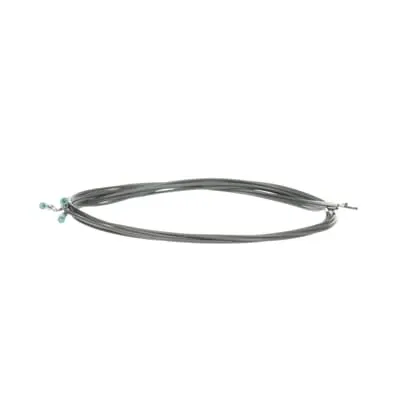

ABB GHC0110003R0006 PTC Temperature Sensor - DIN44081
Part Number: GHC0110003R0006
Quick Summary
ABB GHC0110003R0006 PTC temperature sensor C011-120 protects motors by monitoring winding temperature. Engineers often battle motor overheating and unplanned downtime due to insufficient temperature monitoring. It complies with DIN44081 for PTC sensors, RoHS and REACH declarations, and CMRT supply chain transparency, helping meet regulatory and sourcing requirements. Designed for thermistor motor protection relays and measuring and monitoring relays, it delivers reliable sensing with simple integration, compact dimensions, and minimal wiring. This sensor supports scalable maintenance programs and supports sourcing with clear EAN and packaging details, enabling predictable procurement and lifecycle planning.
Product Information
Extended Description
GHC0110003R0006 ABB: Temperature sensor C011-120, in accordance to DIN44081, grey - grey, 120°C
EAN
4013614085987
Minimum Order Quantity
1 piece
Customs Tariff Number
85332100
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Measuring and Monitoring Relays
Instructions and Manuals
Instruction Sheet / Manual - C011 Temperature sensors for thermistor motor protection relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
4 mm
Product Net Height
4 mm
Product Net Depth / Length
520 mm
Product Net Weight
0.011 kg
Function
PTC temperature sensor
Sub-Function
PTC sensor (single) acc. to DIN44081
Measuring Range
120 °C
Time Range
none
Output
none
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
REACh Info for Electronic Relays and Controls
Package Level 1 Units
bag 1 piece
Package Level 1 Width
103 mm
Package Level 1 Depth / Length
170 mm
Package Level 1 Height
4 mm
Package Level 1 Gross Weight
0.018 kg
Package Level 1 EAN
4013614085987
Object Classification Code
B
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
E-Number (Norway)
4185915
Feature: PTC temperature sensor with DIN44081 compatibility → Business Impact: Standardized interface ensures reliable interoperation with ABB and third-party motor protection relays, reducing integration risk. Application: Thermistor-based motor protection relays in low-voltage switch technology. The result is fewer wiring mistakes and faster commissioning, translating to reduced downtime and faster project ROI. Feature: 120 °C measuring range → Business Impact: Early detection of overheating prevents insulation damage and winding faults, extending motor life. Application: Motors operating under demanding loads where insulation temperatures risk reaching critical levels. Benefit: improved equipment reliability and lower maintenance costs over the asset lifecycle. Feature: Compact form factor with 4 mm x 4 mm sensing element and 520 mm lead length → Business Impact: Flexible routing in confined electrical panels and long-run installations without compromising signal integrity. Application: Space-constrained control cabinets and motor starters. Benefit: easier retrofits and scalable deployments across multiple machines. Feature: Passive sensor with no electrical output → Business Impact: Simpler wiring, reduced EMI risk, and lower leakage paths in harsh environments. Application: Direct wiring into existing protection relays without power handling on the sensor itself. Benefit: robust performance in rugged industrial settings with straightforward procurement. Feature: Rich documentation and packaging details (EAN, CAD files, manuals) → Business Impact: Accelerated design-in and compliant sourcing, supporting procurement and lifecycle management. Application: Engineering and purchasing workflows requiring traceable part numbers and digital assets. Benefit: faster quotes, accurate BOMs, and streamlined maintenance planning.
Get a Quick Quote for a ABB GHC0110003R0006
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB GHC0110003R0006?
Enquire Now
FAQs
This PTC sensor is a passive element designed to monitor winding temperature and connect to compatible thermistor motor protection relays. With a 4x4 mm form factor and a 520 mm lead length, it wires quickly into the protection loop without additional power. Mounting in tight panel spaces and routing the lead to the relay minimizes wiring complexity and supports quick commissioning.
Key specs include a 120 °C measuring range, DIN44081 sub-function for single PTC sensors, no electronic output, and a compact 4 mm by 4 mm sensing element with a 520 mm length. EAN is 4013614085987, minimum order quantity is 1 piece, and packaging supports easy procurement and BOM integration.
Yes. The product carries RoHS declarations and REACH information, along with CMRT for conflict minerals reporting. These certifications support regulatory compliance and responsible sourcing across global supply chains.
Ideal for motor protection relays using thermistors in low-voltage switch technology, it provides reliable temperature sensing for winding protection, reducing risk of insulation damage and unplanned downtime. It’s suited for measuring and monitoring relay configurations in industrial drives and motor control panels.
Sourcing support includes clear EAN, minimum order quantity of 1 piece, CAD dimensional drawings, and manuals. Data sheets and installation instructions are available to speed design-in and ensure accurate BOMs, while packaging details facilitate inventory planning and shipping accuracy.
