ABB GHC0110003R0007 PTC Sensor - 130°C DIN44081
Part Number: GHC0110003R0007
Quick Summary
PTC Sensor ABB GHC0110003R0007 delivers reliable temperature sensing for motor protection relays in industrial drives. Users commonly struggle with overheating and unplanned downtime; this sensor helps prevent that by continuously monitoring up to 130°C. It includes RoHS and REACH declarations, CMRT reporting, and DIN44081 conformity, ensuring safe, compliant integration into automation systems. Designed for tight spaces and easy CAD integration, it supports rapid design-in with ABB drives and compatible third-party relays. By combining precise measurement with strong compliance, it delivers business value through improved uptime, reduced maintenance, and predictable thermal protection across your motor control architecture.
Product Information
Extended Description

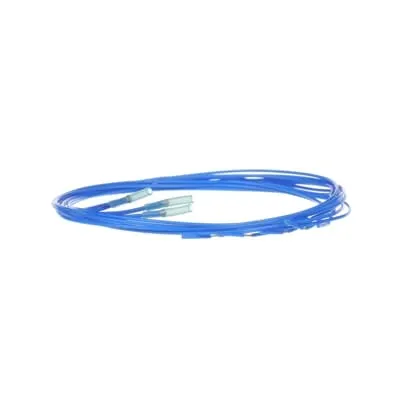

GHC0110003R0007 ABB: Temperature sensor C011-130, in accordance to DIN44081, blue - blue, 130°C
EAN
4013614085994
Minimum Order Quantity
1 piece
Customs Tariff Number
85332100
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Measuring and Monitoring Relays
Instructions and Manuals
Instruction Sheet / Manual - C011 Temperature sensors for thermistor motor protection relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
4 mm
Product Net Height
4 mm
Product Net Depth / Length
520 mm
Product Net Weight
0.011 kg
Function
PTC temperature sensor
Sub-Function
PTC sensor (single) acc. to DIN44081
Measuring Range
130 °C
Time Range
none
Output
none
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
REACh Info for Electronic Relays and Controls
Package Level 1 Units
bag 1 piece
Package Level 1 Width
103 mm
Package Level 1 Depth / Length
170 mm
Package Level 1 Height
4 mm
Package Level 1 Gross Weight
0.018 kg
Package Level 1 EAN
4013614085994
Object Classification Code
B
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
E-Number (Norway)
4185916
DIN44081 compliant PTC sensor with a 130°C measuring range provides reliable motor protection and reduces downtime by enabling early thermal intervention within ABB and compatible relays. This feature translates to a measurable impact on plant availability and maintenance scheduling, with practical application in automation and drive systems. The compact cross-section of 4 mm by 4 mm and a 520 mm length allows integration in crowded panels and tight installations, accelerating field servicing and OEM design cycles. The availability of Data Sheets, CAD files, and installation manuals streamlines engineering workflows, cutting design time and minimizing errors during integration. Compliance with CMRT, REACH, and RoHS reduces procurement risk and supplier audits, supporting safer supply chains and smoother regulatory alignments. ETIM classifications and 2D/3D files enhance product discoverability and accuracy in parts catalogs, while the 1 piece minimum order and clear packaging help streamline procurement for maintenance teams. In practice, engineers benefit from a robust, field-proven sensor that pairs with motor protection relays to deliver consistent thermal monitoring and predictable performance. The combination of DIN44081 compatibility, a defined measurement range, and easy installation makes this sensor a trusted component for low-voltage switch technology applications and automation projects where reliability matters most.
Get a Quick Quote for a ABB GHC0110003R0007
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB GHC0110003R0007?
Enquire Now
FAQs
Install the DIN44081 compliant PTC sensor as a single sensor in the motor protection relay path, following the provided CAD drawings and installation instructions. Use the 4x4 mm cross-section to fit in tight panels and consult the Data Sheet for mounting guidelines and environmental considerations. 2D/3D CAD files are available to streamline integration with ABB drives and compatible relays.
Key specs include a 130 °C measuring range, PTC thermistor technology, DIN44081 compliance, blue-blue sensor body, EAN 4013614085994, and a compact 4 mm × 4 mm footprint with a 520 mm length. It is designed for motor protection relays in automation systems and supports RoHS, REACH, and CMRT certifications.
Yes. The GHC0110003R0007 PTC sensor carries RoHS declarations and a REACH declaration, plus CMRT reporting, ensuring regulatory alignment for European and global supply chains and safer procurement.
Best suited for motor protection relays and automation drives in low-voltage switchgear environments. It monitors motor temperatures via a DIN44081-compliant PTC element, enabling early protection against overheating and supporting reliable operation in industrial settings.
By preventing motor overheating and reducing unplanned downtime, the sensor helps extend motor life and lowers maintenance costs. Its compact form factor simplifies installation, CAD-based design-in speeds up projects, and compliance data reduces procurement risk, contributing to a faster return on investment in automation projects.
