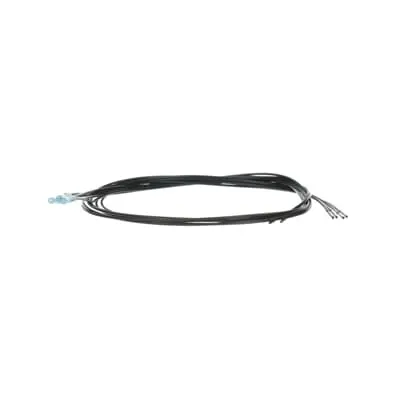

ABB GHC0110003R0008 Temperature Sensor - DIN44081
Part Number: GHC0110003R0008
Quick Summary
ABB GHC0110003R0008 Temperature Sensor is a PTC device designed for motor protection relays and compact drive assemblies. In tight spaces, limited routing room and thermal cycling can jeopardize protection schemes; this sensor provides a robust 150°C measuring range while fitting a slim 4x4 mm profile. It complies with RoHS and REACH, with CMRT documentation to support responsible sourcing and supply chain transparency. The product aligns with DIN44081 through its single-PTC configuration, and its CAD-ready 2D/3D files streamline integration. By combining a compact footprint with reliable performance and traceability, it helps reduce downtime, accelerates design wins, and lowers lifecycle cost of engineered motor-control solutions.
Product Information
Extended Description
GHC0110003R0008 ABB: Temperature sensor C011-150, in accordance to DIN44081, black - black, 150°C
EAN
4013614086007
Minimum Order Quantity
1 piece
Customs Tariff Number
85332100
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Measuring and Monitoring Relays
Instructions and Manuals
Instruction Sheet / Manual - C011 Temperature sensors for thermistor motor protection relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
4 mm
Product Net Height
4 mm
Product Net Depth / Length
520 mm
Product Net Weight
0.011 kg
Function
PTC temperature sensor
Sub-Function
PTC sensor (single) acc. to DIN44081
Measuring Range
150 °C
Time Range
none
Output
none
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
REACh Info for Electronic Relays and Controls
Package Level 1 Units
bag 1 piece
Package Level 1 Width
103 mm
Package Level 1 Depth / Length
170 mm
Package Level 1 Height
4 mm
Package Level 1 Gross Weight
0.018 kg
Package Level 1 EAN
4013614086007
Object Classification Code
B
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
E-Number (Norway)
4185918
Feature: 4x4 mm slim form factor fits tight panel spaces. Business Impact: Easier wiring routing and faster installation, reducing assembly time and panel redesign costs. Application: Motor protection relays in compact drives and automation cabinets benefit from simplified integration and lowered labor content. Feature: Measuring range up to 150 °C provides robust overtemp protection. Business Impact: Early fault detection minimizes motor burnout and unplanned downtime, extending equipment life. Application: Thermistor-based protection in servo drives and fans where thermal margins are critical. Feature: DIN44081 single-PTC sensor configuration ensures compatibility with standard protection relay inputs. Business Impact: Lower integration risk and fewer custom interfaces, speeding time-to-value. Application: Low-voltage switchgear and motor control centers requiring reliable thermal monitoring. Feature: 0.011 kg weight and 520 mm length with 4 mm width enable easy harness routing and minimal mechanical load. Business Impact: Reduced stress on cables and easier installation in crowded enclosures. Application: Modular machines and conveyor systems with tight installation envelopes. Feature: RoHS, REACH, and CMRT compliance with 2D/3D CAD data. Business Impact: Regulatory alignment, sustainability, and accelerated design cycles through native CAD assets. Application: Global supply chains and designed components in ABB-compatible architectures. Feature: CAD data availability and documented packaging (bag 1 piece) support quick stocking and kitting. Business Impact: Faster procurement, accurate BOMs, and lower stock-keeping risk. Application: Engineering onward integration in MES/SCADA environments with standard part numbers.
Get a Quick Quote for a ABB GHC0110003R0008
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB GHC0110003R0008?
Enquire Now
FAQs
Installation begins with verifying DIN44081 compatibility and selecting the correct input on the motor protection relay. The 4x4 mm sensor fits tight panels; route leads to the relay input with minimal bending and secure with standard clamps. Use the CAD data for precise mounting clearances, and consult the Catalog/Data Sheet for lead length recommendations and torque specs on any connection points to ensure reliable readings under vibration.
Key specs include a measuring range up to 150 °C, a compact 4x4 mm cross-section, and a length of 520 mm with a weight of 0.011 kg. The device is RoHS and REACH compliant with CMRT documentation. Expect standard automotive/industrial tolerances for thermistor-based sensors, and rely on the DIN44081 single-PTC configuration to minimize drift in steady-state operation.
Yes, the sensor’s slim form factor and robust DIN44081 compatibility make it suitable for constrained, vibration-prone panels common in motor control centers. Its lightweight design reduces mechanical stress, and the sensor’s thermistor-based protection offers stable readings even with minor mechanical disturbances. For added reliability, mount with vibration-resistant fasteners and use the provided CAD data to optimize routing.
The sensor carries RoHS compliance with EU Directive 2011/65/EU and its amendment 2015/863, a REACH declaration, and CMRT documentation for conflict minerals reporting. ETIM and eClass classifications also relate to its compatibility within electrical component catalogs. These certifications help ensure material traceability, regulatory alignment, and sustainability across global supply chains.
The 150 °C protection range and DIN44081 compatibility reduce unplanned outages by enabling early overtemperature detection. CAD data accelerates design, easing upgrades and spares management. Over time, this translates to lower maintenance costs, shorter downtime, and faster time-to-market for motor-control solutions, delivering measurable ROI in environments with frequent thermal cycling or high load peaks.
