ABB GHC0110003R0009 PTC Temperature Sensor - DIN44081 160°C
Part Number: GHC0110003R0009
Quick Summary
ABB GHC0110003R0009 PTC Temperature Sensor provides precise motor protection for industrial drives. Engineers often wrestle with false trips and delayed fault detection when sensing temperature in crowded control panels. This DIN44081 compliant device also carries RoHS and REACH declarations, helping you meet safety and environmental standards without sacrificing performance. Its compact 4×4 mm form factor and 520 mm lead length simplify installation in tight enclosures, while blue-red PTC elements offer clear diagnostic signals for quick maintenance. Reliable temperature sensing across industrial settings supports predictable plant operation, lower maintenance costs, and easier procurement for panel builders and system integrators.
Product Information
Extended Description

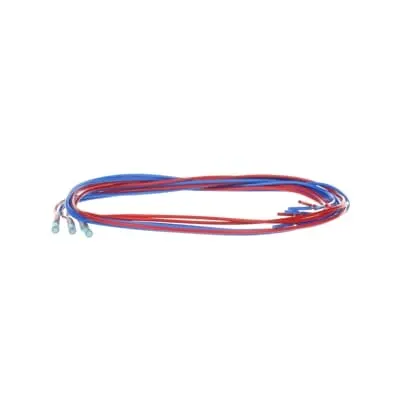

GHC0110003R0009 ABB: Temperature sensor C011-160, in accordance to DIN44081, blue - red, 160°C
EAN
4013614086014
Minimum Order Quantity
1 piece
Customs Tariff Number
85332100
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Measuring and Monitoring Relays
Instructions and Manuals
Instruction Sheet / Manual - C011 Temperature sensors for thermistor motor protection relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
4 mm
Product Net Height
4 mm
Product Net Depth / Length
520 mm
Product Net Weight
0.011 kg
Function
PTC temperature sensor
Sub-Function
PTC sensor (single) acc. to DIN44081
Measuring Range
160 °C
Time Range
none
Output
none
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
REACh Info for Electronic Relays and Controls
Package Level 1 Units
bag 1 piece
Package Level 1 Width
103 mm
Package Level 1 Depth / Length
170 mm
Package Level 1 Height
4 mm
Package Level 1 Gross Weight
0.018 kg
Package Level 1 EAN
4013614086014
Object Classification Code
B
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
E-Number (Norway)
4185919
The PTC temperature sensor offers a 160 °C measuring range that enables early overheat detection, reducing unplanned downtime and protecting motor windings in protection relay schemes. This translates to longer motor life and lower replacement costs when integrated with thermistor motor protection relays in ABB systems or compatible equipment. DIN44081 compliance ensures standardization and straightforward integration into control cabinets, streamlining panel design and spare parts supply. The device’s compact 4×4 mm cross-section and 520 mm lead length facilitate installation in crowded enclosures, accelerating time-to-market for machine builders. RoHS and REACH declarations remove regulatory uncertainty for global deployments, while CMRT and ETIM classifications support supply chain and maintenance workflows. Packaging is fiber-friendly and BOM-friendly with 1 piece per bag, enhancing inventory management while reducing waste.
Get a Quick Quote for a ABB GHC0110003R0009
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB GHC0110003R0009?
Enquire Now
FAQs
Install the sensor per DIN44081 guidelines, connect the PTC leads to the protection relay or controller, and route the 520 mm lead to the sensing input. The compact 4×4 mm footprint simplifies mounting in tight panels, reducing wiring complexity and setup time.
Key specs include a 160 °C measuring range, DIN44081 compatibility, 520 mm lead length, 4 × 4 mm cross-section, and blue-red PTC element for clear diagnostics. It has RoHS and REACH declarations and is designed for motor protection in low-voltage drives.
Yes, the sensor carries RoHS conformity and REACH declarations, meeting EU environmental and chemical compliance requirements for electronic relays and controls used in industrial applications.
Data Sheet and Technical Information are listed under the product's resources, including the Catalog 2024 Electronic Relays and Controls - Chapter Measuring and Monitoring Relays, plus CAD dimensional drawings for integration into your CAD models.
DIN44081 compatibility ensures standardized thermistor sensor integration with motor protection relays. The sensor’s 160 °C range, compact form factor, and 520 mm lead length provide reliable, field-proven protection for motors in low-voltage drive systems.
