ABB GHC0110003R0010 PTC Temperature Sensor - DIN44081
Part Number: GHC0110003R0010
Quick Summary
PTC Temperature Sensor protects motors by monitoring winding temperature in ABB motor drive applications. Without precise sensing, overheating can trigger unplanned downtime and costly repairs. This device aligns with RoHS and REACH requirements, CMRT for responsible sourcing, and DIN44081 compatibility to simplify integration into ABB measuring and monitoring relays. By leveraging its compact form and documented CAD data, designers reduce time-to-value, while procurement benefits from clear specifications and global compliance.
Product Information
Extended Description

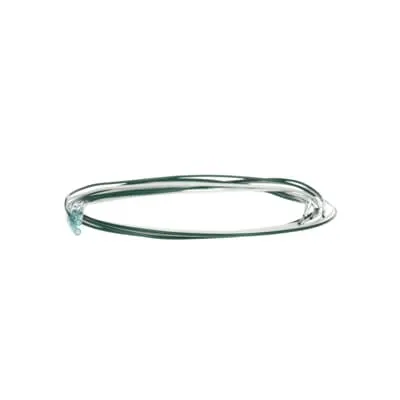

GHC0110003R0010 ABB: Temperature sensor C011-170, in accordance to DIN44081, white - green, 170°C
EAN
4013614086021
Minimum Order Quantity
1 piece
Customs Tariff Number
85332100
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Measuring and Monitoring Relays
Instructions and Manuals
Instruction Sheet / Manual - C011 Temperature sensors for thermistor motor protection relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
4 mm
Product Net Height
4 mm
Product Net Depth / Length
520 mm
Product Net Weight
0.011 kg
Function
PTC temperature sensor
Sub-Function
PTC sensor (single) acc. to DIN44081
Measuring Range
170 °C
Time Range
none
Output
none
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
REACh Info for Electronic Relays and Controls
Package Level 1 Units
bag 1 piece
Package Level 1 Width
103 mm
Package Level 1 Depth / Length
170 mm
Package Level 1 Height
4 mm
Package Level 1 Gross Weight
0.018 kg
Package Level 1 EAN
4013614086021
Object Classification Code
B
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
E-Number (Norway)
4185930
Feature: DIN44081 compliant PTC sensor enables straightforward integration and reliable motor protection. Impact: lowers risk of motor overheating and uncontrolled downtime, improving overall equipment effectiveness. Application: motor protection relays within ABB drive systems. Feature: Measuring range up to 170 °C provides early warning under high-load conditions, reducing wear and unplanned outages. Impact: extends motor life and decreases maintenance costs. Application: industrial motors in conveyors, pumps, and machine tools. Feature: Compact form factor with 4 mm width, 4 mm height, and 520 mm length, weight 0.011 kg, allowing easy routing in crowded control cabinets. Impact: saves panel space and simplifies harness routing, accelerating installation. Application: retrofits and OEM builds in limited enclosure environments. Feature: CAD data access (2D/3D drawings) for quick, accurate integration. Impact: minimizes design cycle time, reduces engineering risk, and improves first-pass fit. Application: OEMs and system integrators designing motor protection assemblies. Feature: Full material and regulatory compliance (RoHS, REACH, CMRT) with ETIM and eClass classifications. Impact: lowers regulatory risk and supplier risk in global deployments. Application: procurement, quality assurance, and sustainability reporting.
Get a Quick Quote for a ABB GHC0110003R0010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB GHC0110003R0010?
Enquire Now
FAQs
This PTC temperature sensor follows the DIN44081 standard and is designed for seamless integration with ABB measuring and monitoring relays. Use the 4 mm by 4 mm sensor section and route the 520 mm lead into protected harnesses; minimum order is 1 piece, with EAN 4013614086021 serving as a precise part identifier.
The sensor offers a measuring range up to 170 °C, providing early thermal indication to motor windings. Its single PTC element, per DIN44081, supports reliable monitoring in motor protection scenarios typical of industrial drives and pumps.
Yes. The device carries RoHS declarations and a REACH declaration, along with CMRT documentation for responsible sourcing, helping meet global regulatory requirements for electronic relays and controls.
Yes. There are CAD dimensional drawings and information for CAD systems, enabling rapid inclusion of the sensor in 2D/3D models and reducing design iterations for motor protection assemblies.
Minimum order quantity is 1 piece, with packaging listed as bag 1 piece per container. The unit uses a standard EAN of 4013614086021, and it is compatible with ETIM/ eClass classifications for easy cataloging in purchasing systems.
