ABB GHC0110003R0011 PTC Temperature Sensor - DIN44081
Part Number: GHC0110003R0011
Quick Summary
PTC Temperature sensor C011-140 protects motors by monitoring winding temperature in ABB drive systems. Inaccurate readings or slow response can trigger unwanted trips and costly downtime, especially in continuous-duty applications. CE compliant, RoHS and REACH declarations support regulatory alignment, while DIN44081 compatibility ensures reliable integration with ABB relays and protection circuits. Designed for industrial automation environments, this sensor simplifies preventive maintenance and extends motor life. Its compact form factor and documented CAD files streamline installation, support spare-part replacement, and reduce total cost of ownership for system integrators and OEMs. The 3-piece packaging offers convenient stocking and rapid rollout for field deployments.
Product Information
Extended Description

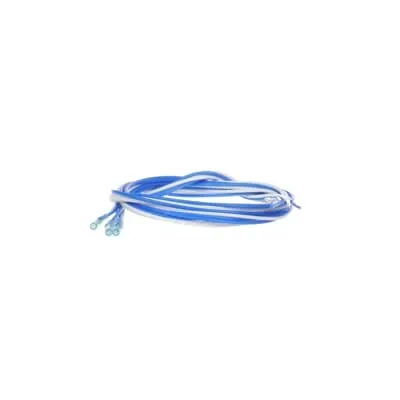

GHC0110003R0011 ABB: Temperature sensor C011-140, in accordance to DIN44081, white - blue, 140°C
EAN
4013614086038
Minimum Order Quantity
1 piece
Customs Tariff Number
85332100
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Measuring and Monitoring Relays
Instructions and Manuals
Instruction Sheet / Manual - C011 Temperature sensors for thermistor motor protection relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
4 mm
Product Net Height
4 mm
Product Net Depth / Length
520 mm
Product Net Weight
0.011 kg
Function
PTC temperature sensor
Sub-Function
PTC sensor (single) acc. to DIN44081
Measuring Range
140 °C
Time Range
none
Output
none
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
REACh Info for Electronic Relays and Controls
Package Level 1 Units
bag 1 piece
Package Level 1 Width
103 mm
Package Level 1 Depth / Length
170 mm
Package Level 1 Height
4 mm
Package Level 1 Gross Weight
0.018 kg
Package Level 1 EAN
4013614086038
Object Classification Code
B
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
E-Number (Norway)
4185917
Feature: DIN44081 compliant PTC sensor with a measuring range up to 140°C and a compact 4 mm by 4 mm footprint, paired with a 520 mm lead. Business impact: Enables precise thermal monitoring in motor protection schemes, reducing overheating risk and unplanned downtime. Application: Ideal for integration into ABB drive systems and control panels where space is at a premium and reliable sensing is essential for uptime. Feature: Passive sensing with no onboard output, requiring a compatible monitoring module. Business impact: Minimizes EMI susceptibility and simplifies EMC compliance while lowering fault-prone cable networks. Application: Works with measuring relays and protection circuits in standard motor control cabinets. Feature: 3-piece packaging and 1 piece minimum order quantity support lean stocking and faster procurement. Business impact: Reduces warehousing costs and speeds project timelines in OEM builds. Application: Suitable for automotive, machine building, and industrial automation environments. Feature: Comprehensive compliance (REACH, RoHS, CMRT) and DIN44081 alignment. Business impact: Eases regulatory filings, supplier audits, and traceability. Application: Enables deployment across regulated supply chains and multi-site installations. Feature: Documentation and compatibility assets including CAD files and data sheets. Business impact: Accelerates engineering design, reduces installation risk, and improves change management. Application: Facilitates BIM/CAD integration for panel design and spare parts planning.
Get a Quick Quote for a ABB GHC0110003R0011
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB GHC0110003R0011?
Enquire Now
FAQs
Install as a passive sensing element in your motor protection circuit or relay module. Route the 520 mm lead into the control panel, connect to the appropriate monitoring input, and verify the DIN44081 specification alignment. Ensure the sensor is positioned to accurately sense motor windings and confirm the 140°C measuring range before commissioning.
The sensor provides a PTC-based temperature signal with a measuring range of up to 140°C. It has no integrated electrical output, so it must be read by a compatible monitoring module or protection relay. This passive design reduces EMI susceptibility and simplifies installation in tight panel spaces.
Yes. The C011-140 sensor is designed for motor protection and monitoring within low-voltage switchgear and ABB drive systems. Its DIN44081 compliance and compact form factor make it a practical choice for retrofits and new builds needing reliable thermal monitoring without altering existing protection logic.
The sensor carries CE certification and RoHS and REACH declarations, supporting regulatory compliance in many regions. It also references CMRT and DIN44081 for compatibility with ETIM-based systems and common industrial documentation, aiding supplier audits and material disclosure.
By enabling early windings temperature detection (up to 140°C), it reduces unplanned downtime and extends motor life. The compact packaging and CAD assets speed up installation, while regulatory compliance reduces audit risk. Overall, expect lower maintenance costs and faster deployment in OEM and automation projects.
