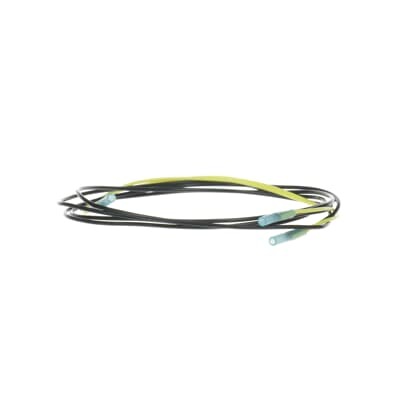

ABB GHC0110033R0008 PTC Temperature Sensor - 150°C
Part Number: GHC0110033R0008
Quick Summary
PTC Temperature Sensor delivers reliable motor protection for ABB drive systems and related equipment. It addresses the challenge of accurate temperature sensing in compact spaces where fast response and robust construction matter. This triple-sensor C011-3-150 carries RoHS compliance and REACH declarations, with CMRT data to support responsible sourcing and supplier due diligence. The device leverages ETIM classifications for easy cataloging and procurement, while its compact 4 mm footprint and lightweight 0.006 kg mass simplify installation in tight panels. Use with ABB motor protection relays and DIN44081-compliant thermistor sensors to reduce downtime and extend equipment life, all while maintaining clear documentation and CAD-ready data.
Product Information
Extended Description
GHC0110033R0008 ABB: The C011-3-150 is a triple-temperature sensor, black – black color coding. This sensor has a rated response temperature of 150°C.
EAN
4013614153464
Minimum Order Quantity
1 piece
Customs Tariff Number
85332100
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Measuring and Monitoring Relays
Instructions and Manuals
Instruction Sheet / Manual - C011 Temperature sensors for thermistor motor protection relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
4 mm
Product Net Height
4 mm
Product Net Depth / Length
520 mm
Product Net Weight
0.006 kg
Function
PTC temperature sensor
Sub-Function
PTC sensor (tripple) acc. to DIN44081
Measuring Range
150 °C
Time Range
none
Output
none
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
REACh Info for Electronic Relays and Controls
Package Level 1 Units
bag 1 piece
Package Level 1 Width
103 mm
Package Level 1 Depth / Length
170 mm
Package Level 1 Height
4 mm
Package Level 1 Gross Weight
0.012 kg
Package Level 1 EAN
4013614153464
Object Classification Code
B
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
E-Number (Norway)
4185910
The triple C011-3-150 PTC sensor delivers enhanced protection across three sensing points, reducing false trips and improving motor protection reliability. This feature translates to fewer unplanned outages and lower maintenance costs in demanding environments; it's particularly beneficial for ABB drives and low-voltage switchgear where space is at a premium. The 150 °C measuring range provides a clear, bounded response for heating scenarios, enabling timely protection actions and safer startup sequences. With a footprint of 4 mm width and 4 mm height and a shallow profile along a 520 mm depth, integration is straightforward in compact control panels, minimizing panel real estate and wiring complexity. RoHS, REACH, CMRT compliance reduces regulatory risk and supports modern supply-chain expectations, while ETIM 7–9 alignment simplifies sourcing across suppliers. Documentation is readily available via Data Sheet, CAD drawings, and manuals to accelerate installation and commissioning. The product page emphasizes a single SKU, streamlining procurement and reducing spare-parts variety, with a low net weight that eases mounting and reduces vibration-induced wear. This sensor is well-suited for motor protection relays in industrial automation, conveyors, and packaging lines where compact size and reliable temperature sensing are critical for uptime and safety.
Get a Quick Quote for a ABB GHC0110033R0008
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB GHC0110033R0008?
Enquire Now
FAQs
This triple-sensor PTC device is designed for straightforward integration with thermistor-based motor protection relays compliant with DIN44081. Ensure correct black–black coding to match the C011-3-150 configuration, mount within the 4 mm footprint, and route the minimal wiring per your control panel standards. Consult the Instruction Sheet / Manual for step-by-step mounting and torque recommendations to prevent misalignment or thermal lag.
The sensor provides a 150 °C measuring range with a rated response temperature up to 150 °C, suitable for protective signaling in motor windings. The triple sensor design offers redundancy and improved reliability in critical motor protection relays, reducing the risk of undetected overheating and enabling timely trips in ABB drive applications.
Yes. The C011-3-150 PTC sensor is specifically used with thermistor-based motor protection relays and DIN44081-compatible configurations, common in ABB low-voltage switchgear. Its compact form factor and DIN-standard compatibility streamline installation, minimize panel-space impact, and support reliable temperature monitoring across multiple motor windings.
The sensor carries a RoHS declaration (EU Directive 2011/65/EU and amendment 2015/863), a REACH declaration, and CMRT data for conflict minerals. It has a single EAN: 4013614153464, and ETIM classifications (EC002498). This helps with regulatory compliance, supplier transparency, and straightforward component sourcing in regulated industries.
The sensor’s compact, lightweight design reduces mounting stress and panel space, simplifying service and replacement. A single SKU simplifies procurement and inventory, while RoHS/REACH/CMRT compliance lowers compliance risks. Reliable 150 °C protection minimizes unplanned downtime, extending motor life and improving overall plant uptime and TCO for automation projects.
