GHQ3050002R0001
Part Number: GHQ3050002R0001
Product Information
Extended Description

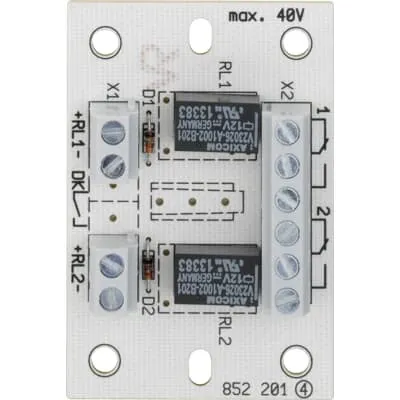

GHQ3050002R0001 ABB: Relay PCB for transistor outputs
Auxiliary Voltage AC/DC
10 ... 30 V DC
Maximum Switching Current
1 A
Power Loss
0.1 W
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 2
Number of Outputs
2
Mounting Type
Built-in
Manual Operation
No
WEEE Category
Product Not in WEEE Scope
Product Net Width
50 mm
Product Net Height
40 mm
Product Net Depth / Length
20 mm
Product Net Weight
0.027 kg
Package Level 1 Units
carton 1 piece
Package Level 1 Gross Weight
0.04 kg
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) RPV10-2
Instructions and Manuals
Installation and Operating Instructions (.PDF) RPV10-2
Data Sheet, Technical Information
Installation and Operating Instructions (.PDF) RPV10-2
ETIM 8
EC001774 - Signal converter for monitoring system
ETIM 9
EC001774 - Signal converter for surveillance system
eClass
V11.0 : 27390308
Object Classification Code
A
