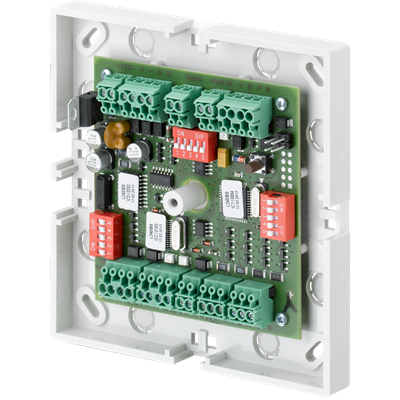

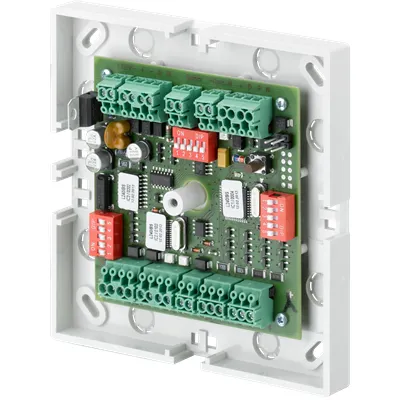

GHQ3050031R0001
Part Number: GHQ3050031R0001
Product Information
Extended Description
GHQ3050031R0001 ABB: For connection of the SafeKey components as well as all components required for a setting door (magnetic contacts, lock bolt switching contact, bolt lock, internal siren). For direct connection to the security-bus of the Intrusion Alarm Panel GM/A 8.1 or L240. The management of the electronic keys from the SafeKey range is undertaken completely via the WebUI of the Security Panel GM/A 8.1 or via the keypadof the L240 intrusion alarm panel.
Instructions and Manuals
Product Manual (.PDF) [DE] L240/BS
Mounting Type
Surface Mounted
Degree of Protection
IP30
Data Sheet, Technical Information
Product Manual (.PDF) [DE] L240/BS
Number of Outputs
4
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 4
Compatible Bus Systems
S-Bus/XIB
Manual Operation
No
Number of Batteries
0
Auxiliary Voltage AC/DC
12 V DC
Output Voltage (Uout)
12 V DC
Maximum Switching Current
0.02 A
Power Loss
1 W
Product Net Width
80 mm
Product Net Height
80 mm
Product Net Depth / Length
20 mm
Product Net Weight
0.105 kg
E-Number (Switzerland)
961870313
RoHS Information
CE Declaration of Conformity (.PDF) L240/BS
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) L240/BS
ETIM 9
EC000782 - Access control unit for bus system
eClass
V11.0 : 27143141
Object Classification Code
A
