GHQ3201973R0021
Part Number: GHQ3201973R0021
Product Information
Extended Description

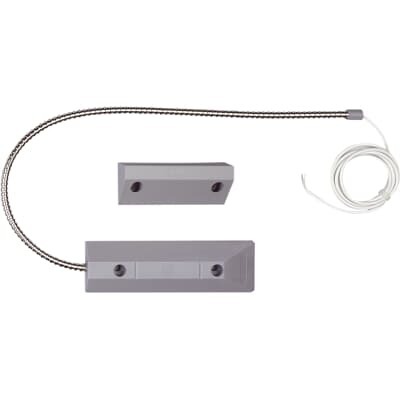

GHQ3201973R0021 ABB: For monitoring opening or rolling doors or other large doors in the industrial field. Contents: 1 magnet, 1 reed contact with 2 m connection cable 4 x 0.14 mm², 1 m protective tubing and 1 set of mounting accessories. Degree of protection: IP 68, Environmental class to VdS 4, VdS class B.
Voltage Range
10 ... 30 V DC
Maximum Switching Current
0.5 A
Power Loss
0 W
Mounting Type
Built-on | Surface Mounted
Manual Operation
No
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP68
Product Net Width
50 mm
Product Net Height
19 mm
Product Net Depth / Length
159 mm
Product Net Weight
0.38 kg
Package Level 1 Units
carton 1 piece
Package Level 1 Gross Weight
0.43 kg
E-Number (Switzerland)
961810903
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) RTK
Instructions and Manuals
Installation and Operating Instructions (.PDF) RTKxx
Data Sheet, Technical Information
Installation and Operating Instructions (.PDF) RTKxx
ETIM 8
EC001761 - Opening detector for intrusion detection system
ETIM 9
EC001761 - Opening detector for danger detection system
eClass
V11.0 : 27390312
Object Classification Code
A
