GHQ4030001R0004
Part Number: GHQ4030001R0004
Product Information
Extended Description

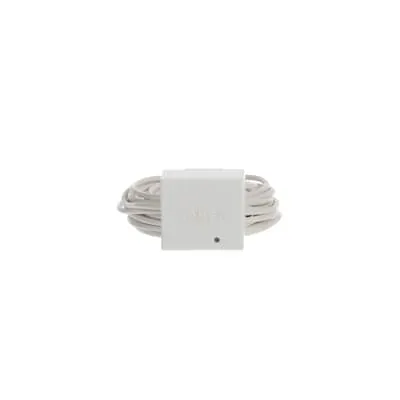

GHQ4030001R0004 ABB: A resin-encapsulated water detector with gold-plated Termipoint pins, detects water ingress, e.g., pipe fractures, ingress of groundwater and sewage, water damage caused by washing machines and dishwashers etc. before the damage becomes too expensive. For operation directly on detector circuits of intrusion alarm panels or security terminals.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] SWM4xxx
Wiring Diagram
Connection diagram (.JPG) [DE] SWM4
Mounting Type
Surface Mounted
Data Sheet, Technical Information
Installation and Operating Instructions (.PDF) [XX] SWM4xxx
Manual Operation
No
Number of Batteries
0
Auxiliary Voltage AC/DC
12 V DC
Power Loss
0.09 W
Color
white
Product Net Width
44 mm
Product Net Height
40 mm
Product Net Depth / Length
23 mm
Product Net Weight
0.133 kg
Dimension Diagram
Dimensional Drawing (.EPS) [XX] SWM4/XX
E-Number (Norway)
4546717
E-Number (Switzerland)
961814103
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) SWM4, SWM4/RN
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) SWM4, SWM4/RN
ETIM 9
EC001764 - Technical detector for danger detection system
eClass
V11.0 : 27143228
Object Classification Code
A
