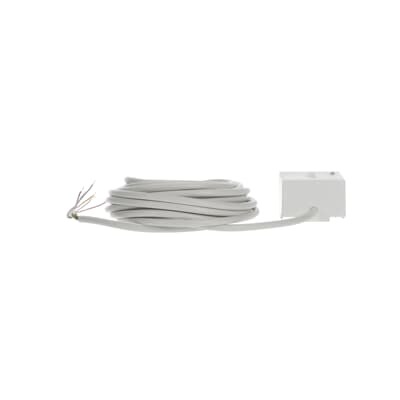

GHQ4030001R0012
Part Number: GHQ4030001R0012
Product Information
Extended Description
GHQ4030001R0012 ABB: A resin-encapsulated water detector with gold-plated Termipoint pins, detects water ingress, e.g., pipe fractures, ingress of groundwater and sewage, water damage caused by washing machines and dishwashers etc. before the damage becomes too expensive. With a potential free changeover contact output, an LED parallel output and a LED display. The detector resets itself automatically when the affected area dries out. The device draws its power from an external 10 ... 23 V DC voltage source.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] SWM4xxx
Wiring Diagram
Connection diagram (.JPG) [DE] SWM4/RN
Mounting Type
Surface Mounted
Data Sheet, Technical Information
Installation and Operating Instructions (.PDF) [XX] SWM4xxx
Number of Outputs
1
Manual Operation
No
Number of Batteries
0
Auxiliary Voltage AC/DC
12 V DC
Output Voltage (Uout)
12 V DC | 24 V DC
Maximum Switching Current
0.5 A
Power Loss
0.09 W
Color
white
Product Net Width
44 mm
Product Net Height
40 mm
Product Net Depth / Length
23 mm
Product Net Weight
0.204 kg
Dimension Diagram
Dimensional Drawing (.EPS) [XX] SWM4/XX
E-Number (Norway)
4546718
E-Number (Switzerland)
961814203
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) SWM4, SWM4/RN
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) SWM4, SWM4/RN
ETIM 9
EC001764 - Technical detector for danger detection system
eClass
V11.0 : 27143228
Object Classification Code
A
