GHQ6050053R0001
Part Number: GHQ6050053R0001
Product Information
Extended Description

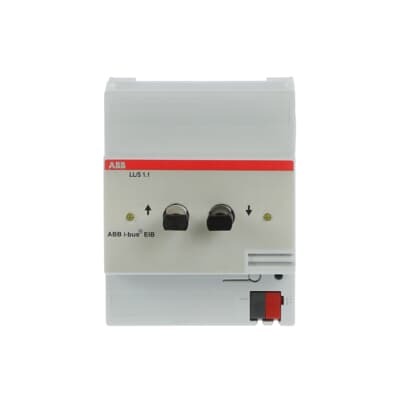

GHQ6050053R0001 ABB: The device is used to couple two sections of an bus line using an optical fibre link. Ideal for bridging longer distances or to avoid having to implement lightning and overvoltage protection when laying cables between buildings. Two devices are needed to complete a transmission link.
Instructions and Manuals
Installation and Operating Instructions (.PDF) LL/S1.1
Wiring Diagram
Connection diagram (.eps) [XX] LL/S 1.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] LL/S1.1
Communication Interface
Optical fiber
Number of LEDs
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Software Updateable
No
Integrated Webserver
No
Number of Batteries
0
Input Voltage (Uin)
24 V DC
Power Loss
0 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
76 mm
Product Net Weight
0.243 kg
Size
4
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
E-Number (Finland)
2818984
E-Number (Norway)
4544186
E-Number (Sweden)
1750090
E-Number (Switzerland)
405830115
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) LL/S1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) LL/S1.1
ETIM 9
EC001099 - System interface/media gateway for bus system
eClass
V11.0 : 27143136
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
Object Classification Code
A
