GHQ6050056R0002
Part Number: GHQ6050056R0002
Product Information
Extended Description

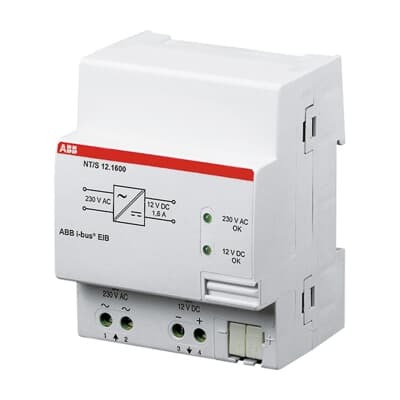

GHQ6050056R0002 ABB: Power supply for usage as the auxiliary power supply in EIB installations or other SELV applications. Supplies a regulated output voltage of 12 V DC and a max. output current of 1.6 A. Protection against overload and short-circuit.
Instructions and Manuals
Installation and Operating Instructions (.PDF) NT/S12.1600
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] NT/S12.1600
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Terminal Type
Screw Terminals
Output Voltage (Uout)
12 V DC
Power Consumption (@Pcons)
30 W
Power Loss
5 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.23 kg
Size
4
E-Number (Sweden)
1750015
E-Number (Switzerland)
405801105
RoHS Information
2CDK501071D270
RoHS Status
Following EU Directive 2011/65/EU
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) NT/S12.1600
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
IDEA Granular Category Code (IGCC)
4130 >> DC-power supply
Object Classification Code
A
