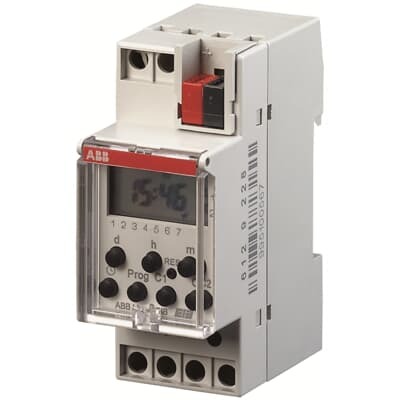

GHQ6050062R0001
Part Number: GHQ6050062R0001
Product Information
Extended Description
GHQ6050062R0001 ABB: Provides timed switching in a weekly program of electrical load groups via the ABB i-bus®. Each channel can switch a load group ON or OFF or send a brightness value to dimming actuators.
Instructions and Manuals
Installation and Operating Instructions (.PDF) SW/S2.5
Mounting Type
DIN-Rail
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SW/S2.5
Number of Channels
2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Options Provided
Weekly program | Annual program | Astro program | Days off programmable
Terminal Type
Bus Connection
Width in Number of Modular Spacings
2.0
Product Net Width
36 mm
Product Net Height
90 mm
Product Net Depth / Length
65 mm
Product Net Weight
0.195 kg
Size
2
Replacement Product ID (NEW)
2CDG120039R0011
ETIM 9
EC000689 - Time switch for bus system
eClass
V11.0 : 27143140
