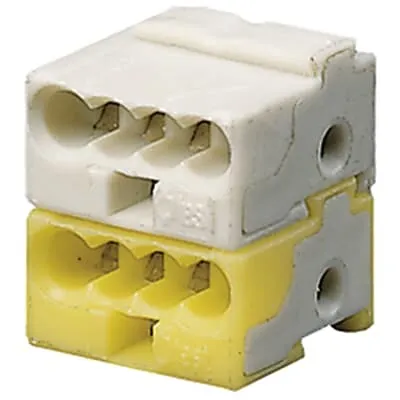

GHQ6301902R0001
Part Number: GHQ6301902R0001
Product Information
Extended Description
GHQ6301902R0001 ABB: Interconnects ABB i-bus® devices having a rear side connection terminal that are mounted on DIN EN 5022 DIN-rails. The data rail is fixed into the DIN-rail, using the adhesive stripe on the rear.
Instructions and Manuals
Technical Data (.PDF) [EN] KLEMME
Mounting Type
Accessory
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] KLEMME
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Terminal Type
Bus Connection
Power Loss
0 W
Product Net Width
10 mm
Product Net Height
12.4 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.002 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Klemme, Busklemme
E-Number (Finland)
2815284
E-Number (Norway)
4544187
E-Number (Sweden)
1750076
E-Number (Switzerland)
157890624
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000635 - Connection-/branching terminal for bus system
eClass
V11.0 : 27143105
UNSPSC
39121432
IDEA Granular Category Code (IGCC)
4603 >> Electrical terminals
Object Classification Code
A
