GHQ6310027R0111
Part Number: GHQ6310027R0111
Product Information
Extended Description

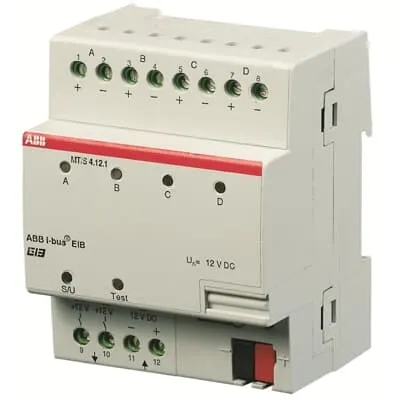

GHQ6310027R0111 ABB: For the monitored connection of passive detectors, e.g., magnetic contacts or glass-breakage sensors of other floating contacts in applications with increased security requirements. 4 groups of detectors ("zones"). 12 V DC power supply required.
Instructions and Manuals
Installation and Operating Instructions (.PDF) MT/S4.12.1
Installing and Commissioning Manual
Product Manual (.PDF) [EN] MT/S4.12.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] MT/S4.12.1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Sensor Type
Signalling group terminal
Manual Operation
No
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.2 kg
Size
4
RoHS Information
Status on EU RoHS directive
KNX Certificate
KNX Certificate (.PDF) [EN] MT/S4.12.1
ETIM 9
EC001100 - Sensor control for bus system
eClass
V11.0 : 27143130
