GHQ6310049R0111
Part Number: GHQ6310049R0111
Product Information
Extended Description

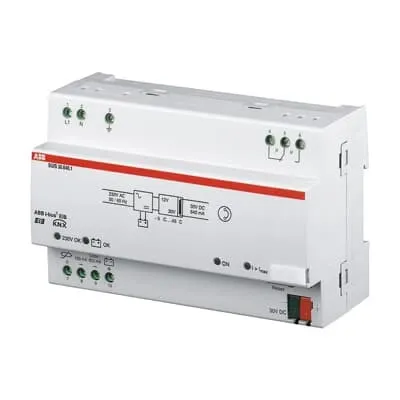

GHQ6310049R0111 ABB: Power supply 640 mA with integrated choke for supplying a bus line from an uninterrupted supply. Quick diagnostics via LED display for operational readiness, fault and battery level as well as a floating contact for a fault signal indication. The accumulator module or up to 2 rechargeablebatteries can be charged in normal operation by the voltage supply. The bus voltage is provided by the batteries in the event of a mains failure.
Instructions and Manuals
Installation and Operating Instructions (.PDF) SU/S30.640.1
Installing and Commissioning Manual
2CDC501005D0202
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product Information (.PDF) [EN] SV/S30.640.5 | Technical Data (.PDF) [EN] SU/S30.640.1
Number of LEDs
1
Number of Integrated Chokes
1
Number of Supplied Lines
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Number of Batteries
0
Buffer Voltage
Yes
Output Current Maximum (Iout)
0.64 A
Power Loss
10 W
Color
light grey
Width in Number of Modular Spacings
8.0
Product Net Width
144 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.498 kg
Size
8
Replacement Product ID (NEW)
2CDG110275R0011
E-Number (Finland)
2815183
E-Number (Sweden)
1750034
E-Number (Switzerland)
405800205
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) SU/S30.640.1
RoHS Status
Following EU Directive 2011/65/EU
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) SU/S30.640.1
KNX Certificate
KNX Certificate (.PDF) [EN] SU/S30.640.1
ETIM 9
EC000675 - Power supply for bus system
eClass
V11.0 : 27143114
UNSPSC
39121004
IDEA Granular Category Code (IGCC)
4127 >> Power supply units
Object Classification Code
A
