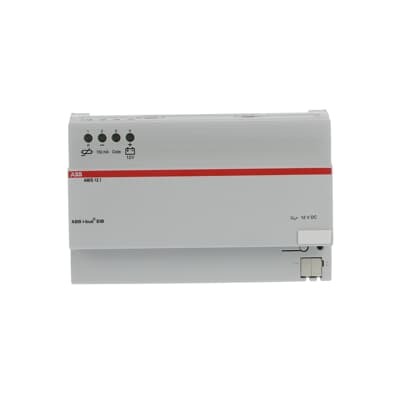

GHQ6310062R0111
Part Number: GHQ6310062R0111
Product Information
Extended Description

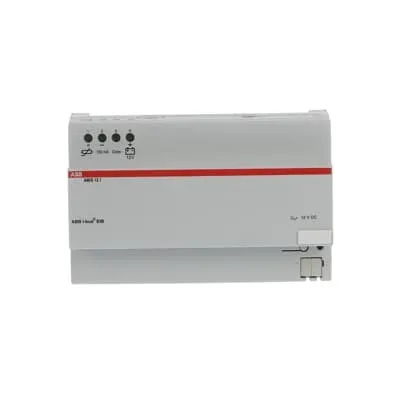

GHQ6310062R0111 ABB: Sealed lead acid battery module for maintaining the ABB i-bus® system voltage in case of a mains failure in connection with the Uninterruptible KNX Power Supply SU/S 30.640.2. Connection is made via standard cables. Minimum backup time: 10 min.
Instructions and Manuals
Installation and Operating Instructions (.PDF) AM/S12.1
Installing and Commissioning Manual
2CDC501005D0202
Wiring Diagram
Connection diagram (.SVG) [XX] AM/S 12.1
Mounting Type
DIN-Rail
Ambient Air Temperature
5 ... 45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product Information (.PDF) [EN] SV/S30.640.5 | Technical Data (.PDF) [EN] AM/S12.1
Number of Supplied Lines
1
Product Range
KNX
Manual Operation
No
Battery Chemical Composition
Lead-Acid
Battery Type
Industrial
Battery Weight
0.294 kg
Number of Batteries
2
Rated Voltage (Ur)
12 V
Voltage Range
12 V DC
Buffer Voltage
No
Power Loss
1 W
Color
light grey
Width in Number of Modular Spacings
8.0
Product Net Width
144 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.761 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 8MW
E-Number (Finland)
2815108
E-Number (Norway)
4544382
E-Number (Sweden)
1750035
E-Number (Switzerland)
405890015
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) AM/S12.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) AM/S12.1
ETIM 9
EC000357 - Rechargeable battery
eClass
V11.0 : 27050403
UNSPSC
26111701
IDEA Granular Category Code (IGCC)
4127 >> Power supply units
Object Classification Code
A
