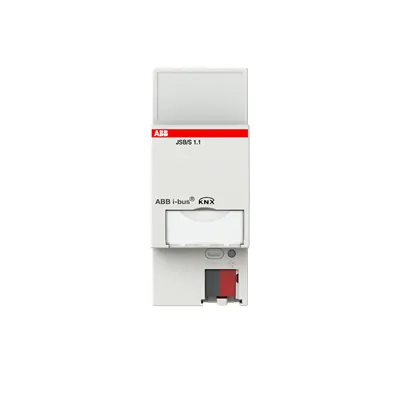

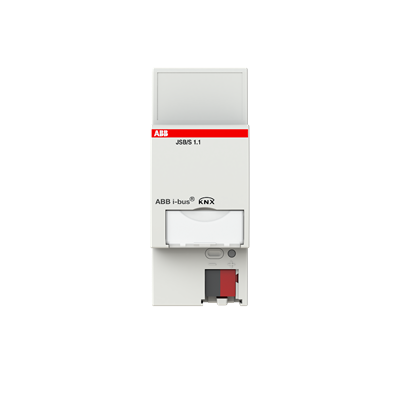

GHQ6310084R0111
Part Number: GHQ6310084R0111
Product Information
Extended Description
GHQ6310084R0111 ABB: Controls shutter and blind actuators according to the position of the sun. The shutter control unit contains the functions of anti-glare protection and daylight redirection for up to 4 facades. Automatic shading can be implemented for every building and climatic control can be supported by the comprehensive range of parameter settings in the ETS.
Instructions and Manuals
Installation and Operating Instructions (.PDF) JSB/S1.1
Installing and Commissioning Manual
2CDC506017D0202
Wiring Diagram
9AKK108469A5511
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product Information (.PDF) [EN] JSB/S1.1
Number of LEDs
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Current Type
DC
Power Loss
0.3 W
Color
light grey
Width in Number of Modular Spacings
2.0
Product Net Width
36 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.091 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 2MW
E-Number (Finland)
2815143
E-Number (Norway)
4544360
E-Number (Sweden)
1751230
E-Number (Switzerland)
405430005
RoHS Information
CE Declaration of Conformity (.PDF) JSB/S1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) JSB/S1.1
KNX Certificate
KNX Certificate (.PDF) [EN] JSB/S1.1
ETIM 9
EC001330 - Shutting actuator for bus system
eClass
V11.0 : 27143128
UNSPSC
39121801
Object Classification Code
A
