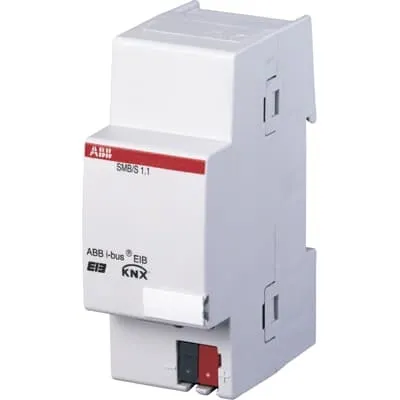

GHQ6310085R0111
Part Number: GHQ6310085R0111
Product Information
Extended Description
GHQ6310085R0111 ABB: It is used to detect and manage up to 100 fault messages which are processed within the unit and can be forwarded to a display unit. Furthermore, an optical and an acoustic collective status signal is provided. Messages can be acknowledged and data losses can bereported. The devices support message formats to DIN 19 235: messages with continuous lighting, new value messages with simple flashing light, initial value messages with simple acknowledgement, motor messages. Current values can be centrally scanned.
Instructions and Manuals
Product Manual (.PDF) [EN] SMB/S1.1
Installing and Commissioning Manual
Product Manual SMB/S 1.1
Wiring Diagram
Connection diagram (.eps) [XX] SMB/S 1.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SMB/S1.1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Voltage Range
KNX
Power Loss
0.3 W
Color
light grey
Width in Number of Modular Spacings
2.0
Product Net Width
36 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.1 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 2MW
E-Number (Finland)
2815282
E-Number (Norway)
4544358
E-Number (Switzerland)
405680105
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) SMB/S 1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) SMB/S 1.1
KNX Certificate
KNX Certificate (.PDF) [EN] SMB/S1.1
ETIM 9
EC000676 - Logic component for bus system
eClass
V11.0 : 27143103
UNSPSC
32151705
IDEA Granular Category Code (IGCC)
3567 >> PLC function/technology module
Object Classification Code
A
