GHV9210018V0090
Part Number: GHV9210018V0090
Product Information
Extended Description

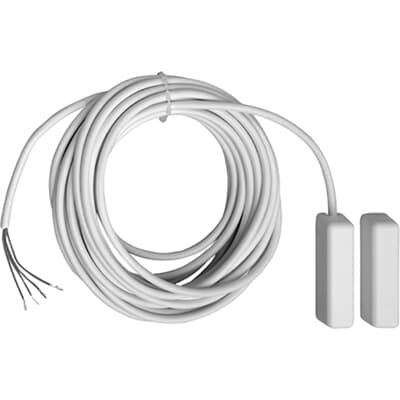

GHV9210018V0090 ABB: For opening surveillance of windows and doors, complete for bolting or drilling. with different magnet protection. Contents: 1 magnet, 1 reed contact with 4.0 m connection cable LIYY 4 x 0.14 mm², 2 housings, 2 spacer plates, 2 flanges and 4 antimagnetic fixing screws.
Voltage Range
12 ... 30 V DC
Maximum Switching Current
0.1 A
Power Loss
0 W
Mounting Type
Built-on | Built-in
Manual Operation
No
Number of Batteries
0
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP68
Product Net Width
43 mm
Product Net Height
12 mm
Product Net Depth / Length
15 mm
Product Net Weight
0.088 kg
Package Level 1 Units
carton 1 piece
Package Level 1 Gross Weight
0.11 kg
E-Number (Switzerland)
961810513
Instructions and Manuals
Installation and Operating Instructions (.PDF) MRSS/x
Data Sheet, Technical Information
Installation and Operating Instructions (.PDF) MRSS/x
ETIM 8
EC001761 - Opening detector for intrusion detection system
ETIM 9
EC001761 - Opening detector for danger detection system
eClass
V11.0 : 27390312
Object Classification Code
A
