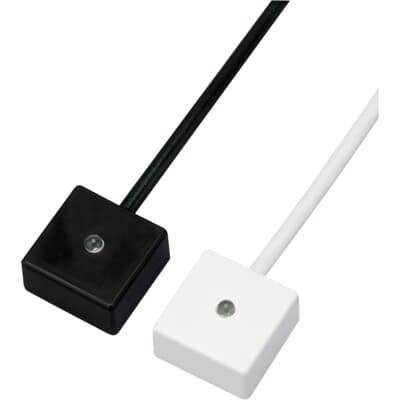

GHV9220004V0009
Part Number: GHV9220004V0009
Product Information
Extended Description
GHV9220004V0009 ABB: For surveillance of glass surfaces of windows, display windows and doors with high interference immunity and integrated memory display. For operation directly on detector circuits of intrusion alarm panels or security terminals. Extremely compact dimensions. Dimensions: H x W x D = 18 x 18 x 9 mm. Mounted onto glass using Loctite adhesive (LKS). With 5 m connection cable. VdS class B.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] SPGS
Wiring Diagram
Connection diagram (.JPG) [DE] SPGS/W
Mounting Type
Surface Mounted
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SPGS/x
Manual Operation
No
Number of Batteries
0
Auxiliary Voltage AC/DC
12 V DC
Power Loss
0.07 W
Color
white
Product Net Width
18 mm
Product Net Height
18 mm
Product Net Depth / Length
9 mm
Product Net Weight
0.087 kg
Dimension Diagram
9AKK108464A0812
E-Number (Switzerland)
961811103
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) SPGS/W, SPGS/B
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) SPGS/W, SPGS/B
ETIM 9
EC001758 - Glass break/vibration detector
eClass
V11.0 : 27143226
Object Classification Code
A
