ABB GJL1201317R0001 Auxiliary Contact - IP20
Part Number: GJL1201317R0001
Quick Summary
Auxiliary Contact provides an extra NO/NC signal for side-mounted signaling in mini contactor motor control circuits. This helps prevent mis-wiring and speeds fault tracing during commissioning and servicing. It complies with IEC/EN 60947-1 and IEC/EN 60947-5-1, UL 60947-1, and CE marking, with IP20 protection for indoor panels. For engineers, it pairs seamlessly with K6 or KC6 mini contactors, reducing part variety while improving reliability. RoHS and REACH compliance support sustainability and regulatory adherence, delivering measurable value through safer installations, easier monitoring, and lower maintenance costs. Using side-mounted auxiliary contacts simplifies wiring diagrams and spares space in compact control panels, helping procurement teams streamline stocking and reduce change orders.
Product Information
Extended Description

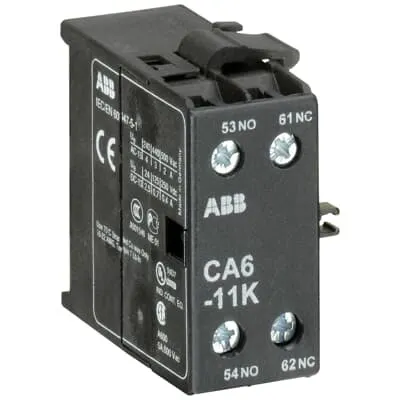

GJL1201317R0001 ABB: CA6-11K is an auxiliary contact for side with 2 auxiliary contact and screw terminals.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHABB001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
Germany (DE)
Lead Time
24 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEUTS002EXPU
Warranty Return
Product under warranty must be returned
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
2CDC102047M6801
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing - Mini Contactor Accessories CA6
Product Net Width
20.3 mm
Product Net Depth / Length
46.5 mm
Product Net Height
48.5 mm
Product Net Weight
0.03 kg
Number of Main Contacts NO
0
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
2P
Standards
IEC/EN 60947-1 | IEC/EN 60947-4-1 | IEC/EN 60947-5-1 | UL 60947-1 | UL 60947-4-1 | IEC 60335-2-40 A2L
Rated Operational Voltage
Auxiliary Circuit 690 V AC | Auxiliary Circuit 250 V DC
Rated Frequency (f)
Auxiliary Circuit 50 Hz | Auxiliary Circuit 60 Hz | Auxiliary Circuit DC
Conventional Free-air Thermal Current (Ith)
Auxiliary Circuit 6 A
Rated Operational Current AC-15 (Ie)
(24 V) 4 A | (240 V) 4 A | (500 V) 2 A | (380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 1.5 A | (110 V) 0.4 A | (220 / 240 V) 0.04 A
Short-Circuit Protective Devices
gG Type Fuses 10 A
Rated Insulation Voltage (Ui)
690 V
Rated Impulse Withstand Voltage (Uimp)
Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency
(AC-15) 600 cycles per hour | (DC-13) 600 cycles per hour
Minimum Switching Capacity
17 V | 5 mA
Power Loss
at Rated Operating Conditions per Pole 0.27 W
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 1 ... 2.5 mm² | Flexible 1/2x 1 ... 2.5 mm² | Rigid 1/2x 1 ... 4 mm²
Wire Stripping Length
Auxiliary Circuit 9 mm
Degree of Protection
IP20
Tightening Torque
Auxiliary Circuit 0.8 ... 1.1 N·m
Terminal Type
Screw Terminals
Suitable For
K6 | KC6
Suitable for Product Class
Mini Contactors
Product Name
Auxiliary Contact
Maximum Operating Voltage UL/CSA
600 V AC
General Use Rating UL/CSA
(600 V AC) 5 A
Connecting Capacity Auxiliary Circuit UL/CSA
Stranded 1/2x 22-10 AWG
Contact Rating UL/CSA
A600
Tightening Torque UL/CSA
Auxiliary Circuit 7 in·lb
Ambient Air Temperature
Operation -25 ... +55 °C | Storage -40 ... +80 °C
Maximum Operating Altitude Permissible
2000 m
Resistance to Shock acc. to IEC 60068-2-27
11 ms Pulse 15g
Resistance to Vibrations
5g 5 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
A2L Certificate – IEC
A2L Certificate - B6-, B7-, K6- series, CA6, CAF6 - Mini Contactor
CB Certificate
CB Certificate - K6, KC6, CA6 - Mini Contactor
CQC Certificate
CQC Certificate, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
cULus Certificate
cUL_E48139
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
Declaration of Conformity - UKCA
UK Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
EAC Certificate
EAC Certificate - CA6, CAF6, EH04 - Contactors
RMRS Certificate
RMRS Certificate - K6, KC6, CA6, CAF6 - Mini Contactor
UL Certificate
UL_E48139
Package Level 1 Units
box 10 piece
Package Level 1 Width
112 mm
Package Level 1 Depth / Length
142 mm
Package Level 1 Height
62 mm
Package Level 1 Gross Weight
0.365 kg
Package Level 1 EAN
4013614412080
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
E-Number (Finland)
3709107
E-Number (Norway)
4190575
E-Number (Sweden)
3210099
Feature: 2P design with 1NO/1NC auxiliary contacts and screw terminals. Business Impact: Simplifies wiring, ensures secure connections, and reduces maintenance downtime due to loose terminals. Application: Ideal for compact control panels and K6/KC6 mini contactors where space is at a premium. Feature: Rated for auxiliary circuit 690 V AC and 250 V DC, with multiple frequency options. Business Impact: Supports versatile control schemes and wide compatibility across industrial networks. Application: Suitable for diverse motor-control applications with mixed AC/DC signaling needs. Feature: IP20 protection and small form factor (20.3 mm width, 46.5 mm depth, 48.5 mm height; 0.03 kg). Business Impact: Enhances panel safety and footprint while easing installation and retrofits. Application: Indoor assemblies where exposure is limited and space is tight. Feature: Compliance and compatibility including IEC/EN standards and RoHS/REACH. Business Impact: Reduces risk during audits and accelerates procurement with a ready-for-market, globally certified accessory. Application: Suitable for automotive and general industry panels requiring compliant auxiliary signaling. Feature: Stock and logistics alignment with K6/KC6 ecosystem and German origin manufacturing. Business Impact: Improves lead times, reduces SKU fragmentation, and supports streamlined sourcing. Application: Global projects leveraging ABB mini contactor families with standardized auxiliary contacts.
