ABB GJL1201317R0002 Auxiliary Contact - IEC/EN 60947-4-1
Part Number: GJL1201317R0002
Quick Summary
ABB GJL1201317R0002 Auxiliary Contact is a 1NO/1NC side-mounted accessory for ABB mini contactors. In tight control panels, wiring clarity and signaling reliability are common pain points that slow commissioning. This accessory meets IEC/EN 60947-1 and UL 60947-1 standards and offers IP20 protection, with RoHS and REACH declarations to support regulatory compliance. By standardizing connections with screw terminals and a compact 20.3 mm width, it streamlines installation across B6-40 family and similar mini contactors, delivering consistent signaling. Businesses gain reduced wiring errors, lower maintenance costs, and faster changeovers, enabling operators to scale automation with confidence.
Product Information
Extended Description

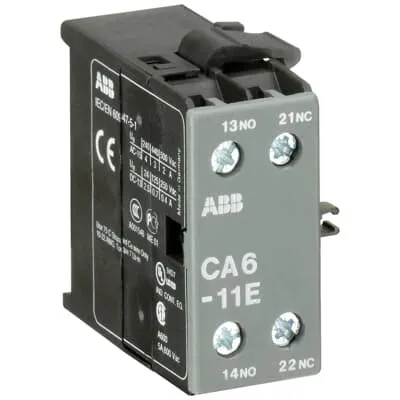

GJL1201317R0002 ABB: CA6-11E is an auxiliary contact for side with 2 auxiliary contact and screw terminals.
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
2CDC102047M6801
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing - Mini Contactor Accessories CA6
Product Net Width
20.3 mm
Product Net Depth / Length
46.5 mm
Product Net Height
48.5 mm
Product Net Weight
0.03 kg
Number of Main Contacts NO
0
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
2P
Standards
IEC/EN 60947-1 | IEC/EN 60947-4-1 | IEC/EN 60947-5-1 | UL 60947-1 | UL 60947-4-1 | IEC 60335-2-40 A2L
Rated Operational Voltage
Auxiliary Circuit 690 V AC | Auxiliary Circuit 250 V DC
Rated Frequency (f)
Auxiliary Circuit 50 Hz | Auxiliary Circuit 60 Hz | Auxiliary Circuit DC
Conventional Free-air Thermal Current (Ith)
Auxiliary Circuit 6 A
Rated Operational Current AC-15 (Ie)
(24 V) 4 A | (240 V) 4 A | (500 V) 2 A | (380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 1.5 A | (110 V) 0.4 A | (220 / 240 V) 0.04 A
Short-Circuit Protective Devices
gG Type Fuses 10 A
Rated Insulation Voltage (Ui)
690 V
Rated Impulse Withstand Voltage (Uimp)
Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency
(AC-15) 600 cycles per hour | (DC-13) 600 cycles per hour
Minimum Switching Capacity
17 V | 5 mA
Power Loss
at Rated Operating Conditions per Pole 0.27 W
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 1 ... 2.5 mm² | Flexible 1/2x 1 ... 2.5 mm² | Rigid 1/2x 1 ... 4 mm²
Wire Stripping Length
Auxiliary Circuit 9 mm
Degree of Protection
IP20
Tightening Torque
Auxiliary Circuit 0.8 ... 1.1 N·m
Terminal Type
Screw Terminals
Suitable For
B6-40-00 | BC6-40-00 | B7-40-00 | BC7-40-00
Suitable for Product Class
Mini Contactors
Product Name
Auxiliary Contact
Maximum Operating Voltage UL/CSA
600 V AC
General Use Rating UL/CSA
(600 V AC) 5 A
Connecting Capacity Auxiliary Circuit UL/CSA
Stranded 1/2x 22-10 AWG
Contact Rating UL/CSA
A600
Tightening Torque UL/CSA
Auxiliary Circuit 7 in·lb
Ambient Air Temperature
Operation -25 ... +55 °C | Storage -40 ... +80 °C
Maximum Operating Altitude Permissible
2000 m
Resistance to Shock acc. to IEC 60068-2-27
11 ms Pulse 15g
Resistance to Vibrations
5g 5 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
A2L Certificate – IEC
A2L Certificate - B6-, B7-, K6- series, CA6, CAF6 - Mini Contactor
CB Certificate
CB Certificate - K6, KC6, CA6 - Mini Contactor
CQC Certificate
CQC Certificate, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
cULus Certificate
cUL_E48139
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
Declaration of Conformity - UKCA
UK Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
EAC Certificate
EAC Certificate - CA6, CAF6, EH04 - Contactors
RMRS Certificate
RMRS Certificate - K6, KC6, CA6, CAF6 - Mini Contactor
UL Certificate
UL_E48139
Package Level 1 Units
box 10 piece
Package Level 1 Width
112 mm
Package Level 1 Depth / Length
142 mm
Package Level 1 Height
62 mm
Package Level 1 Gross Weight
0.365 kg
Package Level 1 EAN
4013614412097
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
E-Number (Finland)
3709105
E-Number (Sweden)
3210095
Feature → Business Impact → Application: The CA6-11E style auxiliary contact provides 1NO/1NC contact in a compact, side-mounted block. This reduces panel footprint and simplifies wiring, delivering lower installation time and fewer connection errors during commissioning in conveyor and machine control circuits. Application: Use with ABB mini contactors in B6-40-00/B7-40-00 lineups to expand signaling options without adding bulk. Feature → Business Impact → Application: Screw terminals enable secure, robust connections with clear torque guidance (0.8–1.1 N·m), improving long-term reliability and reducing loose-wire incidents in harsh environments. Application: Ideal for control cabinets requiring repeatable maintenance and quick field wiring checks. Feature → Business Impact → Application: Rated auxiliary voltage up to 690 V AC and 250 V DC with 50/60 Hz compatibility supports diverse control schemes, increasing design flexibility and reducing the need for multiple accessory variants. Application: Suitable for AC-15 and DC-13 load profiles in motor control and signaling tasks. Feature → Business Impact → Application: 6 A Ith and 0.27 W per pole power loss improve energy efficiency and heat management inside compact panels. Application: Beneficial where thermal margins are tight or multiple auxiliary contacts operate concurrently. Feature → Business Impact → Application: IP20 protection and 9 mm wire stripping length simplify installation in industry-standard enclosures, helping technicians complete jobs faster and with fewer tool requirements. Application: Ideal for standard control panels and retrofit projects where speed and reliability matter. Feature → Business Impact → Application: Comprehensive compatibility with mini contactors and a broad certificate set (IEC/EN, UL, CE, RoHS/REACH) reduces certification overhead for new machinery. Application: Streamlines procurement and compliance for industrial automation projects, from design to commissioning.
Get a Quick Quote for a ABB GJL1201317R0002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB GJL1201317R0002?
Enquire Now
FAQs
The CA6-11E style auxiliary contact is designed as a side-mounted block for ABB mini contactors in the B6-40-00, BC6-40-00, B7-40-00, and BC7-40-00 families. It provides 1NO/1NC and uses standard screw terminals, allowing straightforward integration with existing ABB control circuits and simplifying upgrade paths.
Key ratings include a 690 V AC auxiliary voltage, 250 V DC auxiliary voltage, and operation at 50/60 Hz. It supports AC-15 and DC-13 load profiles with a conventional free-air current rating of 6 A, making it suitable for signaling tasks in motor control and related control circuits.
The unit has a compact footprint with a net width of 20.3 mm, depth of 46.5 mm, and height of 48.5 mm. It weighs about 0.03 kg and uses side mounting with screw terminals, ensuring easy alignment with existing mini contactors and minimal panel intrusion.
This auxiliary contact aligns with IEC/EN 60947-1 and UL 60947-1 standards, and carries CE conformity along with RoHS and REACH declarations. It also references various product declarations and certificates (A2L, CB, CQC, UL) to support global regulatory compliance in industrial environments.
With screw terminals, a defined tightening torque (0.8–1.1 N·m), and a 9 mm wire-stripping length, the installation is fast and repeatable. The compact form factor and clear terminal design reduce wiring errors, lower maintenance needs, and speed up commissioning for machine controls and signaling tasks in industrial automation.
