ABB GJL1201317R0003 Auxiliary Contact - UL/CE Certified
Part Number: GJL1201317R0003
Quick Summary
ABB GJL1201317R0003 Auxiliary Contact is a compact 1NO/1NC block designed for side mounting in mini contactor assemblies. It simplifies signaling wiring in motor control panels and reduces downtime caused by miswiring or terminal loosening. The device carries CE and UL listings with RoHS and REACH declarations, ensuring global compliance for international installations. In addition to compact dimensions, the 2-pole, 1NO/1NC design integrates easily with ABB mini contactors; the result is dependable signaling with low power draw and straightforward installation.
Product Information
Extended Description

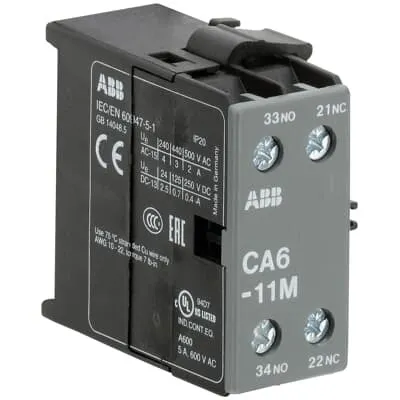

GJL1201317R0003 ABB: CA6-11M is an auxiliary contact for side with 2 auxiliary contact and screw terminals.
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
2CDC102047M6801
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing - Mini Contactor Accessories CA6
Product Net Width
20.3 mm
Product Net Depth / Length
46.5 mm
Product Net Height
48.5 mm
Product Net Weight
0.03 kg
Number of Main Contacts NO
0
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
2P
Standards
IEC/EN 60947-1 | IEC/EN 60947-4-1 | IEC/EN 60947-5-1 | UL 60947-1 | UL 60947-4-1 | IEC 60335-2-40 A2L
Rated Operational Voltage
Auxiliary Circuit 690 V AC | Auxiliary Circuit 250 V DC
Rated Frequency (f)
Auxiliary Circuit 50 Hz | Auxiliary Circuit 60 Hz | Auxiliary Circuit DC
Conventional Free-air Thermal Current (Ith)
Auxiliary Circuit 6 A
Rated Operational Current AC-15 (Ie)
(24 V) 4 A | (240 V) 4 A | (500 V) 2 A | (380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 1.5 A | (110 V) 0.4 A | (220 / 240 V) 0.04 A
Short-Circuit Protective Devices
gG Type Fuses 10 A
Rated Insulation Voltage (Ui)
690 V
Rated Impulse Withstand Voltage (Uimp)
Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency
(AC-15) 600 cycles per hour | (DC-13) 600 cycles per hour
Minimum Switching Capacity
17 V | 5 mA
Power Loss
at Rated Operating Conditions per Pole 0.27 W
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 1 ... 2.5 mm² | Flexible 1/2x 1 ... 2.5 mm² | Rigid 1/2x 1 ... 4 mm²
Wire Stripping Length
Auxiliary Circuit 9 mm
Degree of Protection
IP20
Tightening Torque
Auxiliary Circuit 0.8 ... 1.1 N·m
Terminal Type
Screw Terminals
Suitable For
B6-30-10 | BC6-30-10 | B7-30-10 | BC7-30-10
Suitable for Product Class
Mini Contactors
Product Name
Auxiliary Contact
Maximum Operating Voltage UL/CSA
600 V AC
General Use Rating UL/CSA
(600 V AC) 5 A
Connecting Capacity Auxiliary Circuit UL/CSA
Stranded 1/2x 22-10 AWG
Contact Rating UL/CSA
A600
Tightening Torque UL/CSA
Auxiliary Circuit 7 in·lb
Ambient Air Temperature
Operation -25 ... +55 °C | Storage -40 ... +80 °C
Maximum Operating Altitude Permissible
2000 m
Resistance to Shock acc. to IEC 60068-2-27
11 ms Pulse 15g
Resistance to Vibrations
5g 5 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
A2L Certificate – IEC
A2L Certificate - B6-, B7-, K6- series, CA6, CAF6 - Mini Contactor
CB Certificate
CB Certificate - K6, KC6, CA6 - Mini Contactor
CQC Certificate
CQC Certificate, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
cULus Certificate
cUL_E48139
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
Declaration of Conformity - UKCA
UK Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
EAC Certificate
EAC Certificate - CA6, CAF6, EH04 - Contactors
RMRS Certificate
RMRS Certificate - K6, KC6, CA6, CAF6 - Mini Contactor
UL Certificate
UL_E48139
Package Level 1 Units
box 10 piece
Package Level 1 Width
112 mm
Package Level 1 Depth / Length
142 mm
Package Level 1 Height
62 mm
Package Level 1 Gross Weight
0.365 kg
Package Level 1 EAN
4013614412103
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
E-Number (Finland)
3709106
E-Number (Norway)
4184080
E-Number (Sweden)
3210097
Feature: 2P, 1NO/1NC auxiliary contact with screw terminals. Business Impact: Enables clear, reliable signaling for interlocks and status feedback while preserving a small footprint. Application: Works as a compatible CA6 accessory for ABB mini contactors. Paragraph 2: Feature: Rated operational voltage 690 V AC and 250 V DC; 50/60 Hz. Business Impact: Supports global control panels and mixed supply environments with predictable performance. Application: Suitable for AC-15 and DC-13 switching tasks across regional standards. Paragraph 3: Feature: IP20 protection; RoHS and REACH compliance; UL/CE listings. Business Impact: Enhances machine safety and regulatory compliance, reducing audit findings. Application: Ideal for cabinet-mounted signaling within harsh industrial settings. Paragraph 4: Feature: Screw terminals with 9 mm wire stripping; flexible wiring capacity up to 4 mm² rigid. Business Impact: Simplifies field wiring, improves installation speed, and lowers maintenance costs. Application: Great for retrofit projects and new builds in compact control panels. Paragraph 5: Feature: Low power draw of 0.27 W per pole; I_th 6 A; maximum switching frequency 600 cycles per hour. Business Impact: Minimizes heat rise and extends contact life in continuous operation. Application: Reliable signaling in high-cycle ABB mini contactor configurations. Paragraph 6: Insight: The CA6 family, including CA6-11M, is designed for side mounting and easy interchange with B6-30-10, BC6-30-10, B7-30-10, and BC7-30-10 series. This compatibility reduces part-number proliferation and accelerates procurement in industrial environments.
