ABB CA6-11M-F Auxiliary Contact - UL/CSA Listed
Part Number: GJL1201318R0003
Quick Summary
The ABB CA6-11M-F auxiliary contact is a compact side-mounted signaling interface designed for mini contactors. It helps engineers simplify control wiring while preserving reliable signaling in tight panel confines. With UL/CSA listings, CE marking, and IP20 protection, it supports global compliance in industrial environments. This accessory also benefits from flat-pin connections and a 1NO/1NC configuration, delivering predictable feedback and easier integration with B6-30-10-F, BC6-30-10-F, and other CA6-compatible assemblies.
Product Information
Extended Description

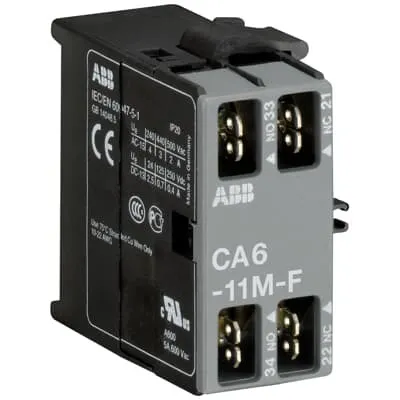

GJL1201318R0003 ABB: CA6-11M-F is an auxiliary contact for side with 2 auxiliary contact and flat pin connection.
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
2CDC102047M6801
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing - Mini Contactor Accessories CA6 (-F)
Product Net Width
20.3 mm
Product Net Depth / Length
46.5 mm
Product Net Height
48.5 mm
Product Net Weight
0.025 kg
Number of Main Contacts NO
0
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
2P
Standards
IEC/EN 60947-1 | IEC/EN 60947-4-1 | IEC/EN 60947-5-1 | UL 60947-1 | UL 60947-4-1 | IEC 60335-2-40 A2L
Rated Operational Voltage
Auxiliary Circuit 690 V AC | Auxiliary Circuit 250 V DC
Rated Frequency (f)
Auxiliary Circuit 50 Hz | Auxiliary Circuit 60 Hz | Auxiliary Circuit DC
Conventional Free-air Thermal Current (Ith)
Auxiliary Circuit 6 A
Rated Operational Current AC-15 (Ie)
(24 V) 4 A | (240 V) 4 A | (500 V) 2 A | (380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 1.5 A | (110 V) 0.4 A | (220 / 240 V) 0.04 A
Short-Circuit Protective Devices
gG Type Fuses 10 A
Rated Insulation Voltage (Ui)
690 V
Rated Impulse Withstand Voltage (Uimp)
Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency
(AC-15) 600 cycles per hour | (DC-13) 600 cycles per hour
Minimum Switching Capacity
17 V | 5 mA
Power Loss
at Rated Operating Conditions per Pole 0.27 W
Degree of Protection
IP20
Terminal Type
Flat-Pin Connections
Suitable For
B6-30-10-F | BC6-30-10-F | B7-30-10-F | BC7-30-10-F
Suitable for Product Class
Mini Contactors
Product Name
Auxiliary Contact
Maximum Operating Voltage UL/CSA
600 V AC
General Use Rating UL/CSA
(600 V AC) 5 A
Contact Rating UL/CSA
A600
Ambient Air Temperature
Operation -25 ... +55 °C | Storage -40 ... +80 °C
Maximum Operating Altitude Permissible
2000 m
Resistance to Shock acc. to IEC 60068-2-27
11 ms Pulse 15g
Resistance to Vibrations
5g 5 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
A2L Certificate – IEC
A2L Certificate - B6-, B7-, K6- series, CA6, CAF6 - Mini Contactor
CB Certificate
CB Certificate - K6, KC6, CA6 - Mini Contactor
CQC Certificate
CQC Certificate, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
cURus Certificate
cUL_E48139
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
Declaration of Conformity - UKCA
UK Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
EAC Certificate
EAC Certificate - CA6, CAF6, EH04 - Contactors
RMRS Certificate
RMRS Certificate - K6, KC6, CA6, CAF6 - Mini Contactor
UL Certificate
UL Certificate of Compliance - K6, KC6, CA6 (Pin/Faston), LB6, LB6CA - Mini Contactor
UR Certificate
1SAA938000-1801
Package Level 1 Units
box 10 piece
Package Level 1 Width
112 mm
Package Level 1 Depth / Length
142 mm
Package Level 1 Height
62 mm
Package Level 1 Gross Weight
0.315 kg
Package Level 1 EAN
4013614412158
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
Feature → Business Impact → Application: Dual auxiliary contacts (1NO/1NC) in a 2P package enable clear, fail-safe signaling with minimal wiring, reducing install time and potential mis-wiring in control panels for motor control and automation cabinets. This improves reliability and maintenance efficiency in conveyor and packaging lines, where quick interlocks and status indication are critical. Feature → Application: Flat-pin connections simplify field wiring and replacement, lowering labor costs and risk of loose connections in high-vibration environments common in metalworking and material handling. Feature → Business Impact → Application: Rated for auxiliary circuits up to 690 V AC / 250 V DC, with AC-15 and DC-13 current ranges, enabling direct integration with widely used miniature contactors and control relays without adapters or adapters. Feature → Application: IP20 enclosure and compact dimensions (20.3 mm wide, 46.5 mm deep, 48.5 mm high) support side-mount installation in crowded control panels and compact starters, preserving clearance for wiring and future wiring harness expansion. Feature → Business Impact → Application: Comprehensive certifications (UL/CSA, CE, EAC, cULus) and RoHS/REACH compliance ensure regulatory readiness across global markets, reducing risk during audits and facilitating supplier qualification for panel builders in automotive, packaging, and process automation. Feature → Application: Compatible with CA6 mini contactor accessories and dimension drawings, enabling seamless retrofit or replacement in existing assemblies and minimizing engineering changes during upgrade projects. Feature → Business Impact → Application: Robust environmental specs (-25 to +55 C, up to 2000 m altitude, shock and vibration resistance) support reliable operation in harsh industrial environments such as foundries, mining, and outdoor enclosures, delivering longer service life and lower lifecycle costs.
