ABB GJL1201318R0004 Auxiliary Contact - UL/CSA, IP20
Part Number: GJL1201318R0004
Quick Summary
Auxiliary contact for mini contactors provides 1NO/1NC side-mounted signaling for compact control panels. In space-constrained environments, wiring complexity and misalignment can cause downtime and costly commissioning delays. It carries UL/CSA and CE certifications and carries IP20 protection, supporting safe operation in demanding industrial settings. The part aligns with IEC/EN 60947-1, -4-1, -5-1 standards and integrates with ABB B6-30-01-F and BC6-30-01-F families for streamlined installation. This accessory delivers 690 V AC / 250 V DC auxiliary voltages and 6 A thermal current, enabling dependable auxiliary control. Using CA6-11N-F improves reliability, standardization, and serviceability in control circuits.
Product Information
Extended Description

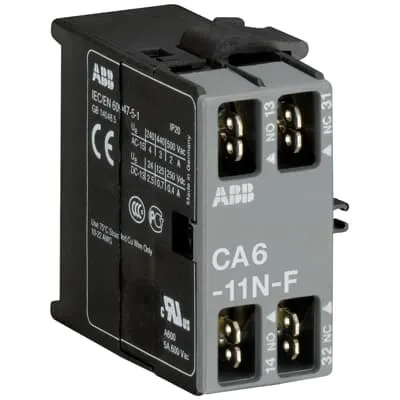

GJL1201318R0004 ABB: CA6-11N-F is an auxiliary contact for side with 2 auxiliary contact and flat pin connection.
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
2CDC102047M6801
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing - Mini Contactor Accessories CA6 (-F)
Product Net Width
20.3 mm
Product Net Depth / Length
46.5 mm
Product Net Height
48.5 mm
Product Net Weight
0.025 kg
Number of Main Contacts NO
0
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
2P
Standards
IEC/EN 60947-1 | IEC/EN 60947-4-1 | IEC/EN 60947-5-1 | UL 60947-1 | UL 60947-4-1 | IEC 60335-2-40 A2L
Rated Operational Voltage
Auxiliary Circuit 690 V AC | Auxiliary Circuit 250 V DC
Rated Frequency (f)
Auxiliary Circuit 50 Hz | Auxiliary Circuit 60 Hz | Auxiliary Circuit DC
Conventional Free-air Thermal Current (Ith)
Auxiliary Circuit 6 A
Rated Operational Current AC-15 (Ie)
(24 V) 4 A | (240 V) 4 A | (500 V) 2 A | (380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 1.5 A | (110 V) 0.4 A | (220 / 240 V) 0.04 A
Short-Circuit Protective Devices
gG Type Fuses 10 A
Rated Insulation Voltage (Ui)
690 V
Rated Impulse Withstand Voltage (Uimp)
Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency
(AC-15) 600 cycles per hour | (DC-13) 600 cycles per hour
Minimum Switching Capacity
17 V | 5 mA
Power Loss
at Rated Operating Conditions per Pole 0.27 W
Degree of Protection
IP20
Terminal Type
Flat-Pin Connections
Suitable For
B6-30-01-F | BC6-30-01-F | B7-30-01-F | BC7-30-01-F
Suitable for Product Class
Mini Contactors
Product Name
Auxiliary Contact
Maximum Operating Voltage UL/CSA
600 V AC
General Use Rating UL/CSA
(600 V AC) 5 A
Contact Rating UL/CSA
A600
Ambient Air Temperature
Operation -25 ... +55 °C | Storage -40 ... +80 °C
Maximum Operating Altitude Permissible
2000 m
Resistance to Shock acc. to IEC 60068-2-27
11 ms Pulse 15g
Resistance to Vibrations
5g 5 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
A2L Certificate – IEC
A2L Certificate - B6-, B7-, K6- series, CA6, CAF6 - Mini Contactor
CB Certificate
CB Certificate - K6, KC6, CA6 - Mini Contactor
CQC Certificate
CQC Certificate, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
cURus Certificate
cUL_E48139
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
Declaration of Conformity - UKCA
UK Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
EAC Certificate
EAC Certificate - CA6, CAF6, EH04 - Contactors
RMRS Certificate
RMRS Certificate - K6, KC6, CA6, CAF6 - Mini Contactor
UL Certificate
UL Certificate of Compliance - K6, KC6, CA6 (Pin/Faston), LB6, LB6CA - Mini Contactor
UR Certificate
1SAA938000-1801
Package Level 1 Units
box 10 piece
Package Level 1 Width
112 mm
Package Level 1 Depth / Length
142 mm
Package Level 1 Height
62 mm
Package Level 1 Gross Weight
0.315 kg
Package Level 1 EAN
4013614412165
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
