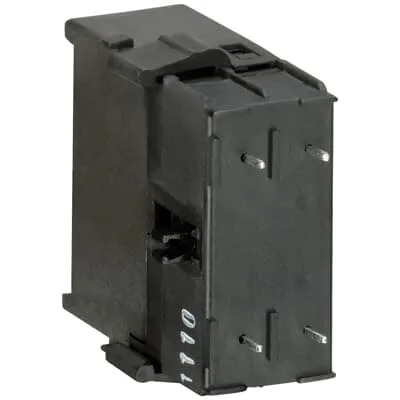

ABB GJL1201319R0001 Auxiliary Contact - IP20
Part Number: GJL1201319R0001
Quick Summary
ABB GJL1201319R0001 Auxiliary Contact is a compact two-pole accessory used with mini contactors to provide 1 NO and 1 NC auxiliary contact in control circuits. Engineers often struggle with wiring density, reliability, and panel space when expanding control functionality, and dedicated auxiliary contacts help address these challenges. The device complies with IEC/EN 60947-1 and 60947-4-1, UL 60947-1, and CE declarations, with IP20 protection for indoor panel installations. Designed for seamless compatibility with K6-P and KC6-P mini contactors, it reduces maintenance time and inventory complexity. By delivering reliable signaling and easy integration, it supports faster commissioning and consistent performance across automated systems.
Product Information
Extended Description
GJL1201319R0001 ABB: CA6-11K-P is an auxiliary contact for side with 2 auxiliary contact and soldering pins.
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
2CDC102047M6801
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing - Mini Contactor Accessories CA6 (-P)
Product Net Width
20.3 mm
Product Net Depth / Length
51.5 mm
Product Net Height
48.5 mm
Product Net Weight
0.025 kg
Number of Main Contacts NO
0
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
2P
Standards
IEC/EN 60947-1 | IEC/EN 60947-4-1 | IEC/EN 60947-5-1 | UL 60947-1 | UL 60947-4-1 | IEC 60335-2-40 A2L
Rated Operational Voltage
Auxiliary Circuit 690 V AC | Auxiliary Circuit 250 V DC
Rated Frequency (f)
Auxiliary Circuit 50 Hz | Auxiliary Circuit 60 Hz | Auxiliary Circuit DC
Conventional Free-air Thermal Current (Ith)
Auxiliary Circuit 6 A
Rated Operational Current AC-15 (Ie)
(24 V) 4 A | (240 V) 4 A | (500 V) 2 A | (380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 1.5 A | (110 V) 0.4 A | (220 / 240 V) 0.04 A
Short-Circuit Protective Devices
gG Type Fuses 10 A
Rated Insulation Voltage (Ui)
690 V
Rated Impulse Withstand Voltage (Uimp)
Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency
(AC-15) 600 cycles per hour | (DC-13) 600 cycles per hour
Minimum Switching Capacity
17 V | 5 mA
Power Loss
at Rated Operating Conditions per Pole 0.27 W
Degree of Protection
IP20
Terminal Type
Soldering Pins
Suitable For
K6-P | KC6-P
Suitable for Product Class
Mini Contactors
Product Name
Auxiliary Contact
Maximum Operating Voltage UL/CSA
600 V AC
General Use Rating UL/CSA
(600 V AC) 5 A
Contact Rating UL/CSA
A600
Ambient Air Temperature
Operation -25 ... +55 °C | Storage -40 ... +80 °C
Maximum Operating Altitude Permissible
2000 m
Resistance to Shock acc. to IEC 60068-2-27
11 ms Pulse 15g
Resistance to Vibrations
5g 5 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
A2L Certificate – IEC
A2L Certificate - B6-, B7-, K6- series, CA6, CAF6 - Mini Contactor
CB Certificate
CB Certificate - K6, KC6, CA6 - Mini Contactor
CQC Certificate
CQC Certificate, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
cURus Certificate
cUL_E48139
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
Declaration of Conformity - UKCA
UK Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
EAC Certificate
EAC Certificate - CA6, CAF6, EH04 - Contactors
RMRS Certificate
RMRS Certificate - K6, KC6, CA6, CAF6 - Mini Contactor
UL Certificate
UL Certificate of Compliance - K6, KC6, CA6 (Pin/Faston), LB6, LB6CA - Mini Contactor
UR Certificate
1SAA938000-1801
Package Level 1 Units
box 10 piece
Package Level 1 Width
112 mm
Package Level 1 Depth / Length
142 mm
Package Level 1 Height
62 mm
Package Level 1 Gross Weight
0.315 kg
Package Level 1 EAN
4013614412189
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
Feature: Side-mounted auxiliary contact with soldering pins simplifies installation and reduces panel depth. Business impact: Faster wiring, fewer assembly errors, and lower labor costs during panel builds. Application: Ideal for control cabinets where space is at a premium and quick field wiring is required. Feature: Two auxiliary contacts (1 NO / 1 NC) in a 2P package enables complementary signaling and interlock logic. Business impact: Improves diagnostic visibility and enables safer machine interlocks, reducing downtime due to miswiring. Application: Motor control and safety interlock circuits in packaging, material handling, and process automation. Feature: Compact dimensions and light weight (20.3 mm width, 51.5 mm depth, 48.5 mm height; ~0.025 kg). Business impact: Minimal impact on enclosure footprint and thermal load, enabling denser layouts and easier heat management. Application: Panel-mounted assemblies in compact PLC and hybrid control racks. Feature: Soldering-pin terminals with wide voltage and current ratings (Auxiliary circuit 690 V AC / 250 V DC; I_th 6 A). Business impact: Broad compatibility with existing control gear and robust signaling under typical industrial loads. Application: 50/60 Hz mains and DC control circuits in industrial automation. Feature: Compliance and certifications (IEC/EN local standards, UL, CE, RoHS). Business impact: Accelerates regulatory approvals and supplier qualification, reducing time-to-market for panel builds and machine retrofits. Application: Global manufacturing environments requiring traceable adherence to standards. Feature: K6-P / KC6-P compatibility and mini contactor integration. Business impact: Streamlined spare-parts strategy and consistent performance across ABB mini contactor families. Application: Machine safety circuits, interlocks, and signaling networks across ABB automation portfolios.
Get a Quick Quote for a ABB GJL1201319R0001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB GJL1201319R0001?
Enquire Now
FAQs
Yes. The CA6-11K-P auxiliary contact is designed for mini contactors and is listed as suitable for K6-P and KC6-P assemblies. It provides 1 NO and 1 NC contact in a side-mounted 2P package with soldering-pin terminals, enabling straightforward integration into ABB K6-P/KC6-P control circuits.
The auxiliary contact supports auxiliary circuit voltages up to 690 V AC and 250 V DC, with a rated current up to 6 A (Ith). It offers 1 NO and 1 NC contact in a 2P configuration, with AC-15/DC-13 ratings suitable for control and signaling tasks, and a maximum switching frequency around 600 cycles per hour. These specs suit standard control and interlock applications.
Installation is by soldering pins on the auxiliary contact to the appropriate PCB or terminal block. The unit is designed as a compact 2P accessory that fits with K6-P and KC6-P mini contactors. Ensure clean solder joints, proper clearance for the 20.3 mm width and 51.5 mm depth, and verify IP20 protection after mounting to maintain enclosure integrity.
The CA6-11K-P accessory is covered by IEC/EN 60947-1 and 60947-4-1 standards, UL 60947-1, and CE declarations, with RoHS compliance and WEEE considerations. A2L and other declarations may also apply, ensuring suitability for global panel applications and helping with regulatory compliance in diverse markets.
Adding this auxiliary contact improves signaling reliability, reduces wiring complexity, and enables compact interlock schemes in motor control panels. It also standardizes spare parts and accelerates commissioning, delivering lower lifecycle costs, faster maintenance, and better diagnostics across automated processes.
