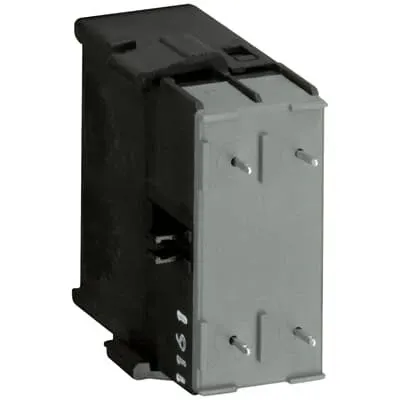

ABB GJL1201319R0003 Auxiliary Contact - IEC 60947-4-1
Part Number: GJL1201319R0003
Quick Summary
ABB GJL1201319R0003 Auxiliary Contact provides 1NO/1NC signaling for side-mounted mini contactors in machine controls. Many panel builders struggle with space constraints and wiring complexity when expanding signaling options. It carries IEC/EN 60947-1 and 60947-4-1 certifications and UL recognition, with IP20 protection for indoor panel duty. This accessory fits ABB mini contactor families and enables quick retrofits without rearranging major control circuits. By delivering a compact, RoHS-compliant solution, it reduces wiring, speeds assembly, and enhances signaling reliability in new builds or panel upgrades.
Product Information
Extended Description
GJL1201319R0003 ABB: CA6-11M-P is an auxiliary contact for side with 2 auxiliary contact and soldering pins.
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
2CDC102047M6801
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing - Mini Contactor Accessories CA6 (-P)
Product Net Width
20.3 mm
Product Net Depth / Length
51.5 mm
Product Net Height
48.5 mm
Product Net Weight
0.025 kg
Number of Main Contacts NO
0
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
2P
Standards
IEC/EN 60947-1 | IEC/EN 60947-4-1 | IEC/EN 60947-5-1 | UL 60947-1 | UL 60947-4-1 | IEC 60335-2-40 A2L
Rated Operational Voltage
Auxiliary Circuit 690 V AC | Auxiliary Circuit 250 V DC
Rated Frequency (f)
Auxiliary Circuit 50 Hz | Auxiliary Circuit 60 Hz | Auxiliary Circuit DC
Conventional Free-air Thermal Current (Ith)
Auxiliary Circuit 6 A
Rated Operational Current AC-15 (Ie)
(24 V) 4 A | (240 V) 4 A | (500 V) 2 A | (380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 1.5 A | (110 V) 0.4 A | (220 / 240 V) 0.04 A
Short-Circuit Protective Devices
gG Type Fuses 10 A
Rated Insulation Voltage (Ui)
690 V
Rated Impulse Withstand Voltage (Uimp)
Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency
(AC-15) 600 cycles per hour | (DC-13) 600 cycles per hour
Minimum Switching Capacity
17 V | 5 mA
Power Loss
at Rated Operating Conditions per Pole 0.27 W
Degree of Protection
IP20
Terminal Type
Soldering Pins
Suitable For
B6-30-10-P | BC6-30-10-P | B7-30-10-P | BC7-30-10-P
Suitable for Product Class
Mini Contactors
Product Name
Auxiliary Contact
Maximum Operating Voltage UL/CSA
600 V AC
General Use Rating UL/CSA
(600 V AC) 5 A
Contact Rating UL/CSA
A600
Ambient Air Temperature
Operation -25 ... +55 °C | Storage -40 ... +80 °C
Maximum Operating Altitude Permissible
2000 m
Resistance to Shock acc. to IEC 60068-2-27
11 ms Pulse 15g
Resistance to Vibrations
5g 5 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
A2L Certificate – IEC
A2L Certificate - B6-, B7-, K6- series, CA6, CAF6 - Mini Contactor
CB Certificate
CB Certificate - K6, KC6, CA6 - Mini Contactor
CQC Certificate
CQC Certificate, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
cURus Certificate
cUL_E48139
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
Declaration of Conformity - UKCA
UK Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
EAC Certificate
EAC Certificate - CA6, CAF6, EH04 - Contactors
RMRS Certificate
RMRS Certificate - K6, KC6, CA6, CAF6 - Mini Contactor
UL Certificate
UL Certificate of Compliance - K6, KC6, CA6 (Pin/Faston), LB6, LB6CA - Mini Contactor
UR Certificate
1SAA938000-1801
Package Level 1 Units
box 10 piece
Package Level 1 Width
112 mm
Package Level 1 Depth / Length
142 mm
Package Level 1 Height
62 mm
Package Level 1 Gross Weight
0.315 kg
Package Level 1 EAN
4013614412202
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
Two-pole auxiliary contact with 1 normally open and 1 normally closed contact, side-mounted soldering-pin termination. This configuration reduces wiring complexity and cut-down installation time, delivering higher reliability in signaling paths between the contactor and the control system. Ideal for interlock and status signaling in compact control panels, it supports faster commissioning and easier troubleshooting in machine automation projects. Rated for challenging industrial environments, its 690 V AC / 250 V DC operation and 50/60 Hz compatibility ensure seamless integration with standard control circuits, reducing the need for extra interfaces. The device meets IP20 protection and applicable standards (IEC/EN 60947-1, 60947-4-1; UL); this translates to safer panel operation and regulatory compliance. Soldering-pin terminals enable robust, vibration-tolerant connections, simplifying maintenance and field replacements in harsh settings. Compatibility with ABB mini contactor families such as B6-30-10-P, BC6-30-10-P, B7-30-10-P, and BC7-30-10-P supports scalable, modular control architectures while keeping inventory lean. The small form factor (approx. 20.3 mm width, 51.5 mm depth, 48.5 mm height) and light weight (0.025 kg) help minimize panel depth and load while enabling easy retrofits from legacy coil-control schemes. Environmental and regulatory compliance, including RoHS/REACH/TSCA disclosures and WEEE B2B classification, streamline procurement and sustainability reporting while aligning with modern manufacturing standards.
Get a Quick Quote for a ABB GJL1201319R0003
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB GJL1201319R0003?
Enquire Now
FAQs
The GJL1201319R0003 auxiliary contact is designed for ABB mini contactor families B6-30-10-P, BC6-30-10-P, B7-30-10-P, and BC7-30-10-P, offering a reliable side-mounted, soldering-pin connection for 1NO/1NC signaling.
It supports up to 690 V AC and 250 V DC with 50/60 Hz operation. The rated current is 6 A (Ith) on the auxiliary circuit, with AC-15 rated operation around 4 A at common voltages and DC-13 up to 1.5 A at 24 V, ensuring compatibility with typical control circuits.
The device is certified to IEC/EN 60947-1 and 60947-4-1, UL 60947-1/60947-4-1 compliant, with IP20 protection, REACH/RoHS compliance, and related safety declarations for industrial control panels.
Net width 20.3 mm, depth 51.5 mm, height 48.5 mm, with soldering-pin terminals for secure, vibration-tolerant connections in compact assemblies.
By reducing wiring complexity, enabling quick retrofits, and providing a compact signaling solution, this auxiliary contact lowers assembly time, improves maintainability, and supports safer, standards-compliant control panels with minimal spare parts.
