ABB GJL1201330R0005 Auxiliary Contact - IP20, Front Mounted
Part Number: GJL1201330R0005
Quick Summary
GJL1201330R0005 auxiliary contact is designed for front-mounted signaling in ABB mini contactor assemblies. Engineers often struggle with wiring clutter and limited space; this accessory streamlines installation and maintenance with rear- or front-side screw terminal access. This device meets IEC/EN and UL standards for control circuits, while CE and RoHS compliance support global deployments. In addition, its compact 2P, 2NO/0NC design delivers reliable signaling with minimal panel footprint, enabling quicker panel builds and easier future upgrades while maintaining robust safety and regulatory adherence.
Product Information
Extended Description

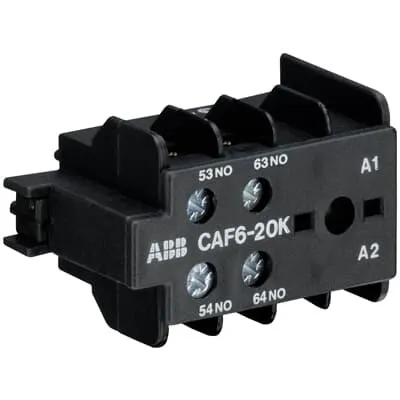

GJL1201330R0005 ABB: The CAF6-20K is an auxiliary contact for front mounting with 2 auxiliary contact and screw terminals.
Country of Origin
Czech Republic (CZ)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Czech Republic (CZ)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHABB001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
Czech Republic (CZ)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
167 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Czech Republic (CZ)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Operating instruction - CAF6 Auxiliary contact for front mounting
Instructions and Manuals (Part 2)
Operating instruction - CAF6 Auxiliary contact for front mounting
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing - Mini Contactor Accessories CAF6
Product Net Width
47.5 mm
Product Net Depth / Length
26.5 mm
Product Net Height
29 mm
Product Net Weight
0.02 kg
Number of Main Contacts NO
0
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
0
Number of Poles
2P
Standards
IEC/EN 60947-1 | IEC/EN 60947-4-1 | IEC/EN 60947-5-1 | UL 60947-1 | UL 60947-4-1 | IEC 60335-2-40 A2L
Rated Operational Voltage
Auxiliary Circuit 690 V AC | Auxiliary Circuit 250 V DC
Rated Frequency (f)
Auxiliary Circuit 50 Hz | Auxiliary Circuit 60 Hz | Auxiliary Circuit DC
Conventional Free-air Thermal Current (Ith)
Auxiliary Circuit 6 A
Rated Operational Current AC-15 (Ie)
(24 V) 4 A | (240 V) 4 A | (500 V) 2 A | (380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 1.5 A | (110 V) 0.4 A | (220 / 240 V) 0.04 A
Short-Circuit Protective Devices
gG Type Fuses 10 A
Rated Insulation Voltage (Ui)
690 V
Rated Impulse Withstand Voltage (Uimp)
Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency
(AC-15) 600 cycles per hour | (DC-13) 600 cycles per hour
Minimum Switching Capacity
17 V | 5 mA
Power Loss
at Rated Operating Conditions per Pole 0.27 W
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 1 ... 2.5 mm² | Flexible 1/2x 1 ... 2.5 mm² | Rigid 1/2x 1 ... 4 mm²
Wire Stripping Length
Auxiliary Circuit 9 mm
Degree of Protection
IP20
Tightening Torque
Auxiliary Circuit 0.8 ... 1.1 N·m
Terminal Type
Screw Terminals
Suitable For
K6 | KC6
Suitable for Product Class
Mini Contactors
Product Name
Auxiliary Contact
Maximum Operating Voltage UL/CSA
600 V AC
General Use Rating UL/CSA
(600 V AC) 5 A
Connecting Capacity Auxiliary Circuit UL/CSA
Stranded 1/2x 22-10 AWG
Contact Rating UL/CSA
A600
Tightening Torque UL/CSA
Auxiliary Circuit 7 in·lb
Ambient Air Temperature
Operation -25 ... +55 °C | Storage -40 ... +80 °C
Maximum Operating Altitude Permissible
2000 m
Resistance to Shock acc. to IEC 60068-2-27
11 ms Pulse 15g
Resistance to Vibrations
5g 5 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
A2L Certificate – IEC
A2L Certificate - B6-, B7-, K6- series, CA6, CAF6 - Mini Contactor
CQC Certificate
CQC Certificate, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
cULus Certificate
cUL_E48139
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
Declaration of Conformity - UKCA
UK Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
EAC Certificate
EAC Certificate - CA6, CAF6, EH04 - Contactors
RMRS Certificate
RMRS Certificate - K6, KC6, CA6, CAF6 - Mini Contactor
UL Certificate
UL_E48139
Package Level 1 Units
box 10 piece
Package Level 1 Width
115 mm
Package Level 1 Depth / Length
280 mm
Package Level 1 Height
54 mm
Package Level 1 Gross Weight
0.24 kg
Package Level 1 EAN
4013614412264
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
E-Number (Finland)
3709095
E-Number (Norway)
4190581
Feature → Business Impact → Application: Front mounting and screw terminals simplify wiring and reduce install time, lowering labor costs and potential wiring errors in control panels. This directly improves reliability in machine starters and signaling circuits used in packaging lines and conveyors. Feature → Business Impact → Application: Dual NO auxiliary contacts rated for mixed AC/DC signaling enable flexible control logic in mini contactor assemblies, improving system responsiveness and fault detection in automated lines. Feature → Business Impact → Application: Compact dimensions (47.5 mm x 26.5 mm x 29 mm) and light weight save enclosure space in crowded panelboards, supporting more compact motor control centers with easier future expansion. Feature → Business Impact → Application: IEC/EN, UL, CE, and RoHS certifications streamline compliance across regions, reducing risk during audits and expediting installation in multinational facilities. Feature → Business Impact → Application: Wire-capable terminals support flexible conductor ranges (1/2x 1 to 4 mm²) and stable torque (0.8–1.1 N·m), ensuring consistent terminations for long-term durability in harsh environments. Feature → Business Impact → Application: Low power loss (0.27 W per pole) contributes to overall energy efficiency in control circuits and reduces heat within compact enclosures, aiding thermal management in dense installations.
