ABB GJL1201330R0006 Auxiliary Contact - IP20 UL/CSA
Part Number: GJL1201330R0006
Quick Summary
Auxiliary Contact for ABB front mounting provides reliable signaling for mini contactors in control circuits. Designed for space-constrained panels, it minimizes wiring clutter and speeds panel assembly without sacrificing reliability. Certified to CE, UL/CSA, and UKCA with IP20 protection and IEC 60947-1/4/5 compatibility, it supports global compliance. Having front-mounted screw terminals simplifies installation, reduces maintenance time, and improves serviceability in even harsh environments. By offering 2 NO auxiliary contacts and robust terminals, it delivers scalable signaling for motor control and automation logic, helping you cut downtime and optimize spare parts inventory. This combination of rugged design and industry-standard compatibility translates to lower total cost of ownership across factory lines.
Product Information
Extended Description

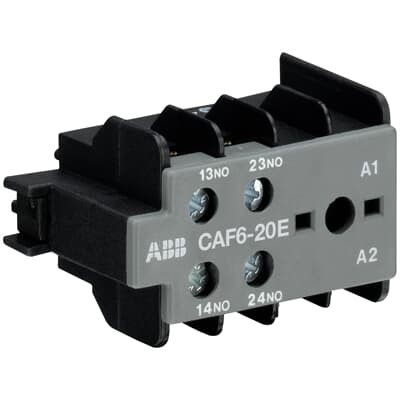

GJL1201330R0006 ABB: The CAF6-20E is an auxiliary contact for front mounting with 2 auxiliary contact and screw terminals.
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Operating instruction - CAF6 Auxiliary contact for front mounting
Instructions and Manuals (Part 2)
Operating instruction - CAF6 Auxiliary contact for front mounting
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing - Mini Contactor Accessories CAF6
Product Net Width
47.5 mm
Product Net Depth / Length
26.5 mm
Product Net Height
29 mm
Product Net Weight
0.02 kg
Number of Main Contacts NO
0
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
0
Number of Poles
2P
Standards
IEC/EN 60947-1 | IEC/EN 60947-4-1 | IEC/EN 60947-5-1 | UL 60947-1 | UL 60947-4-1 | IEC 60335-2-40 A2L
Rated Operational Voltage
Auxiliary Circuit 690 V AC | Auxiliary Circuit 250 V DC
Rated Frequency (f)
Auxiliary Circuit 50 Hz | Auxiliary Circuit 60 Hz | Auxiliary Circuit DC
Conventional Free-air Thermal Current (Ith)
Auxiliary Circuit 6 A
Rated Operational Current AC-15 (Ie)
(24 V) 4 A | (240 V) 4 A | (500 V) 2 A | (380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 1.5 A | (110 V) 0.4 A | (220 / 240 V) 0.04 A
Short-Circuit Protective Devices
gG Type Fuses 10 A
Rated Insulation Voltage (Ui)
690 V
Rated Impulse Withstand Voltage (Uimp)
Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency
(AC-15) 600 cycles per hour | (DC-13) 600 cycles per hour
Minimum Switching Capacity
17 V | 5 mA
Power Loss
at Rated Operating Conditions per Pole 0.27 W
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 1 ... 2.5 mm² | Flexible 1/2x 1 ... 2.5 mm² | Rigid 1/2x 1 ... 4 mm²
Wire Stripping Length
Auxiliary Circuit 9 mm
Degree of Protection
IP20
Tightening Torque
Auxiliary Circuit 0.8 ... 1.1 N·m
Terminal Type
Screw Terminals
Suitable For
B6-40-00 | BC6-40-00 | B7-40-00 | BC7-40-00 | VB6-40-00 | VBC6-40-00 | VB7-40-00 | VBC7-40-00 | VB6A-40-00 | VBC6A-40-00 | VB7A-40-00 | VBC7A-40-00
Suitable for Product Class
Mini Contactors
Product Name
Auxiliary Contact
Maximum Operating Voltage UL/CSA
600 V AC
General Use Rating UL/CSA
(600 V AC) 5 A
Connecting Capacity Auxiliary Circuit UL/CSA
Stranded 1/2x 22-10 AWG
Contact Rating UL/CSA
A600
Tightening Torque UL/CSA
Auxiliary Circuit 7 in·lb
Ambient Air Temperature
Operation -25 ... +55 °C | Storage -40 ... +80 °C
Maximum Operating Altitude Permissible
2000 m
Resistance to Shock acc. to IEC 60068-2-27
11 ms Pulse 15g
Resistance to Vibrations
5g 5 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
A2L Certificate – IEC
A2L Certificate - B6-, B7-, K6- series, CA6, CAF6 - Mini Contactor
CQC Certificate
CQC Certificate, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
cULus Certificate
cUL_E48139
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
Declaration of Conformity - UKCA
UK Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
EAC Certificate
EAC Certificate - CA6, CAF6, EH04 - Contactors
RMRS Certificate
RMRS Certificate - K6, KC6, CA6, CAF6 - Mini Contactor
UL Certificate
UL_E48139
Package Level 1 Units
box 10 piece
Package Level 1 Width
115 mm
Package Level 1 Depth / Length
280 mm
Package Level 1 Height
54 mm
Package Level 1 Gross Weight
0.24 kg
Package Level 1 EAN
4013614412271
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
E-Number (Finland)
3709097
E-Number (Norway)
4184086
Feature → Business Impact → Application: Front-mounted CAF6-20E auxiliary contact with 2 NO/0 NC and screw terminals enables quick installation and reduced panel wiring, boosting installation efficiency and lowering labor costs in crowded switchgear layouts. Application: Ideal for retrofits and new builds in compact control panels, especially where space is at a premium and reliable signaling is required for ABB mini contactors. Feature → Business Impact → Application: Rated 690 V AC / 250 V DC auxiliary circuit with 50 Hz / 60 Hz operation and 6 A I_th delivers dependable signaling for motor control circuits, reducing failure risk and improving PLC/relay logic reliability. Application: Suitable for AC-15 and DC-13 control schemes in standard ABB compact contactor assemblies. Feature → Business Impact → Application: Front-mounted screw terminals with 9 mm wire stripping length and 0.8–1.1 N·m tightening torque simplify wiring and ensure robust connections, cutting maintenance time and enhancing vibration resistance in industrial environments. Application: Used in harsh factory floors and machine automation where vibration and thermal cycling can affect contact reliability. Feature → Business Impact → Application: Compatibility with B6-40-00, BC6-40-00, B7-40-00, BC7-40-00, VB6-40-00, VBC6-40-00, VB7-40-00, VBC7-40-00, VB6A-40-00, VBC6A-40-00, VB7A-40-00, VBC7A-40-00 ensures straightforward integration with ABB mini contactors across product lines. Application: Streamlines procurement and spare parts management with a single accessory family. Feature → Business Impact → Application: IP20 protection, RoHS/REACH compliance, and multiple certifications (CE, UL/CSA, UKCA) reduce compliance risk and enable global deployment. Application: Suitable for industrial control panels in Europe, North America, and UK markets, aligning with regional electrical codes and safety standards.
