ABB GJL1201330R0008 Auxiliary Contact - UL Listed
Part Number: GJL1201330R0008
Quick Summary
The ABB GJL1201330R0008 Auxiliary Contact provides 2 NO auxiliary contacts for front mounting on mini contactors used in control panels. Operators often struggle with wiring errors and limited space; this compact accessory reduces miswiring and simplifies panel wiring. Certified to IEC/EN 60947-1 and UL 60947-1/60947-4-1 with RoHS compliance, it also carries CE and IP20 protection. By integrating with ABB mini contactors such as B6/B7 series, you gain reliable signaling, easier diagnostics, and scalable control. Its front-mount design and front terminals support straightforward installation, reducing commissioning time and maintenance costs. Key specs include 2 NO/0 NC contacts, 690 V AC rating for auxiliary circuits, IP20 protection, and 0.27 W per pole power loss, aligning with industrial efficiency goals.
Product Information
Extended Description

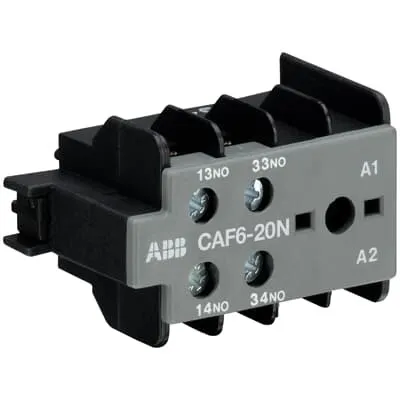

GJL1201330R0008 ABB: The CAF6-20N is an auxiliary contact for front mounting with 2 auxiliary contact and screw terminals
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Operating instruction - CAF6 Auxiliary contact for front mounting
Instructions and Manuals (Part 2)
Operating instruction - CAF6 Auxiliary contact for front mounting
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing - Mini Contactor Accessories CAF6
Product Net Width
47.5 mm
Product Net Depth / Length
26.5 mm
Product Net Height
29 mm
Product Net Weight
0.02 kg
Number of Main Contacts NO
0
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
0
Number of Poles
2P
Standards
IEC/EN 60947-1 | IEC/EN 60947-4-1 | IEC/EN 60947-5-1 | UL 60947-1 | UL 60947-4-1 | IEC 60335-2-40 A2L
Rated Operational Voltage
Auxiliary Circuit 690 V AC | Auxiliary Circuit 250 V DC
Rated Frequency (f)
Auxiliary Circuit 50 Hz | Auxiliary Circuit 60 Hz | Auxiliary Circuit DC
Conventional Free-air Thermal Current (Ith)
Auxiliary Circuit 6 A
Rated Operational Current AC-15 (Ie)
(24 V) 4 A | (240 V) 4 A | (500 V) 2 A | (380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 1.5 A | (110 V) 0.4 A | (220 / 240 V) 0.04 A
Short-Circuit Protective Devices
gG Type Fuses 10 A
Rated Insulation Voltage (Ui)
690 V
Rated Impulse Withstand Voltage (Uimp)
Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency
(AC-15) 600 cycles per hour | (DC-13) 600 cycles per hour
Minimum Switching Capacity
17 V | 5 mA
Power Loss
at Rated Operating Conditions per Pole 0.27 W
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 1 ... 2.5 mm² | Flexible 1/2x 1 ... 2.5 mm² | Rigid 1/2x 1 ... 4 mm²
Wire Stripping Length
Auxiliary Circuit 9 mm
Degree of Protection
IP20
Tightening Torque
Auxiliary Circuit 0.8 ... 1.1 N·m
Terminal Type
Screw Terminals
Suitable For
B6-30-01 | BC6-30-01 | B7-30-01 | BC7-30-01 | VB6-30-01 | VBC6-30-01 | VB7-30-01 | VBC7-30-01 | VB6A-30-01 | VBC6A-30-01 | VB7A-30-01 | VBC7A-30-01
Suitable for Product Class
Mini Contactors
Product Name
Auxiliary Contact
Maximum Operating Voltage UL/CSA
600 V AC
General Use Rating UL/CSA
(600 V AC) 5 A
Connecting Capacity Auxiliary Circuit UL/CSA
Stranded 1/2x 22-10 AWG
Contact Rating UL/CSA
A600
Tightening Torque UL/CSA
Auxiliary Circuit 7 in·lb
Ambient Air Temperature
Operation -25 ... +55 °C | Storage -40 ... +80 °C
Maximum Operating Altitude Permissible
2000 m
Resistance to Shock acc. to IEC 60068-2-27
11 ms Pulse 15g
Resistance to Vibrations
5g 5 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
A2L Certificate – IEC
A2L Certificate - B6-, B7-, K6- series, CA6, CAF6 - Mini Contactor
CQC Certificate
CQC Certificate, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
cULus Certificate
cUL_E48139
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor relays, K6,KC6,CA6,CAF6, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
Declaration of Conformity - UKCA
UK Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
EAC Certificate
EAC Certificate - CA6, CAF6, EH04 - Contactors
RMRS Certificate
RMRS Certificate - K6, KC6, CA6, CAF6 - Mini Contactor
UL Certificate
UL_E48139
Package Level 1 Units
box 10 piece
Package Level 1 Width
115 mm
Package Level 1 Depth / Length
280 mm
Package Level 1 Height
54 mm
Package Level 1 Gross Weight
0.24 kg
Package Level 1 EAN
4013614412295
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
E-Number (Norway)
4184092
The CAF6-20N auxiliary contact is a front-mounted accessory designed to add two NO auxiliary contacts to a mini contactor, enabling enhanced signaling without expanding panel depth. The compact footprint—47.5 mm wide, 26.5 mm deep, 29 mm high, and 0.02 kg—delivers space efficiency while maintaining robust connectivity with screw terminals able to accept flexible Ferrule 1/2 x 1 to 2.5 mm² or rigid 1/2 x 1 to 4 mm² wires. This combination lowers wiring errors and reduces field install time, translating to lower commissioning costs. Rated 690 V AC and 250 V DC auxiliary circuits, with 50/60 Hz compatibility, support diverse control schemes and improve compatibility across motor control applications. The device is designed for IP20 protection and adheres to IEC/EN 60947-1, UL 60947-1, UL 60947-4-1, and RoHS requirements, ensuring regulatory compliance and safer operation in factory floors. The accessory’s 2P pole design and front-mount feature simplify interchangeability and maintenance, while the low 0.27 W per pole power loss contributes to overall energy efficiency.
