ABB GJL1201908R0001 Connecting Link - UL Certified
Part Number: GJL1201908R0001
Quick Summary
Connecting Link is a compact ABB accessory used to connect the main poles of two VB6/VB7 mini reversing contactors in motor control circuits. In panel assemblies, misalignment and wiring complexity can slow projects and increase field service time. This accessory carries UL Certification, EU CE Declaration of Conformity, and RoHS compliance, offering regulatory assurance in demanding environments. By reducing wiring steps and providing insulated upstream and downstream connections, it simplifies installation and improves safety. Compatible with VB6, VB6A, VB7, and VB7A contactors, it supports scalable equipment baselines, lowers spare parts variety, and accelerates commissioning for OEMs and panel builders alike. Its compact 53 mm width and 15 mm depth help minimize panel space while preserving robust electrical connectivity.
Product Information
Extended Description

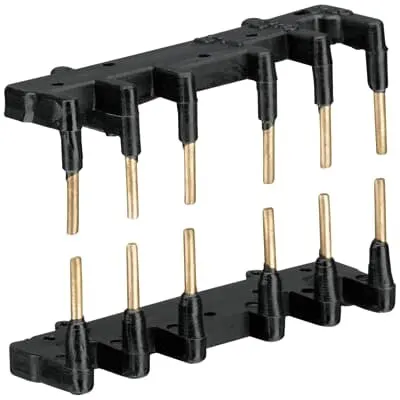

GJL1201908R0001 ABB: The BSM6-30 reversing connecting link is used to connect the main poles of two 3-pole contactors
mounted side by side. The BSM6-30 reversing connecting link is made up of 1 insulated upstream and 1 insulated downstream connections and suitable for all VB6/VB7 mini reversing contactors. The connector ensures a quick and safe connection of the contacts.
Country of Origin
Switzerland (CH)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHABB001EXPU
Warranty Return
Product under warranty must be returned
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
1SBC100214C0201
Instructions and Manuals
2CDC102046M6801
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
53 mm
Product Net Depth / Length
15 mm
Product Net Height
17 mm
Product Net Weight
0.01 kg
Rated Insulation Voltage (Ui)
690 V
Terminal Type
No Terminals
Suitable For
VB6 | VBC6 | VB6A | VBC6A | VB7 | VBC7 | VB7A | VBC7A
Suitable for Product Class
Mini Contactors
Product Name
Connecting Link
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABS Certificate
NoCerNee
BV Certificate
NoCerNee
Declaration of Conformity - CE
EU Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
Declaration of Conformity - UKCA
UK Declaration of Conformity - B6, B7, K6, VB6, VB7, TBC7, TKC6 - Mini Contactor
DNV Certificate
NoCerNee
GL Certificate
NoCerNee
LR Certificate
NoCerNee
RINA Certificate
NoCerNee
RMRS Certificate
NoCerNee
UL Certificate
UL Certificate of Compliance - B6, B7 - Mini Contactor
Package Level 1 Units
bag 10 piece
Package Level 1 Width
100 mm
Package Level 1 Depth / Length
5 mm
Package Level 1 Height
150 mm
Package Level 1 Gross Weight
0.105 kg
Package Level 1 EAN
4013614140631
Package Level 2 EAN
4013614412448
Object Classification Code
X
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
E-Number (Norway)
4184098
Feature → Insulated upstream and downstream connections reduce the risk of accidental shorts during assembly and commissioning. Business Impact → Safer installations with lower rework rates and enhanced operator confidence in panel wiring. Application → Ideal for quick linking between two VB series mini contactors in motor control panels. Feature → Compatibility with VB6, VB6A, VB7, and VB7A contactors streamlines spare parts planning. Business Impact → Reduces inventory diversity and speeds repair or upgrade cycles. Application → Suitable for mixed-contactor environments in conveyors and packaging lines. Feature → No terminals requirement simplifies mounting and minimizes the chance of loose connections. Business Impact → Accelerates installation, reduces training time for technicians, and improves reliability. Application → Great for compact control cabinets with tight routing. Feature → Rated insulation voltage of 690 V and RoHS compliance ensure regulatory adherence in industrial settings. Business Impact → Supports compliance programs and lowers risk of nonconformance during audits. Application → Core in European and global panel builds. Feature → Small footprint (53 mm wide, 15 mm deep, 17 mm high) with low weight (0.01 kg) offers space-efficient integration. Business Impact → Enables denser layouts and easier replacement during maintenance Windows. Application → Beneficial for OEMs delivering compact motor control solutions.
Get a Quick Quote for a ABB GJL1201908R0001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB GJL1201908R0001?
Enquire Now
FAQs
The connecting link is designed for VB6, VBC6, VB6A, VBC6A, VB7, VBC7, VB7A, and VBC7A mini contactors. This compatibility ensures streamlined interconnection of main poles for reversing configurations in motor control panels, reducing spare parts variety and simplifying installation in mixed-contactor environments.
Power must be de-energized before installation. Align upstream and downstream insulated ends, slide the connecting link between the two contactors, and verify proper seating to ensure a reliable, quick connection. The design eliminates the need for terminal screws, minimizing risk of loose connections and speeding commissioning in control cabinets.
This ABBConnecting Link is UL certified for safety, RoHS compliant for restricted substance limits, and ships with CE and UKCA declarations of conformity. These certifications support regulatory compliance in global automotive, packaging, and industrial automation environments, reducing qualification time for OEMs and panel builders.
The unit has a compact footprint of 53 mm width, 15 mm depth, and 17 mm height, weighing 0.01 kg. It is rated for a rated insulation voltage of 690 V and features no terminals, aligning with VB6/VB7 mini contactor configurations for quick, space-efficient installations in confined control panels.
By enabling faster wiring, reducing misconnection risks, and shortening commissioning times, the linking accessory lowers labor costs and downtime. Its standardized footprint and compatibility with multiple VB contactor families also simplify stocking and maintenance, providing predictable total cost of ownership in motor control and automation projects.
