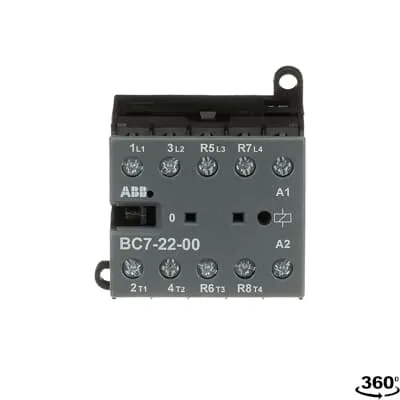

ABB BC7-22-00-01 Mini Contactor - 24V DC, 2NO 2NC
Part Number: GJL1313501R0001
Quick Summary
Mini Contactor ABB BC7-22-00-01 provides compact 4-pole control for small to mid-size loads in panel-mounted applications. In compact control panels, space is a premium and reliability cannot be compromised. CE-compliant designs with rugged options and SIL-ready control variants support safe, long-life operation in demanding environments. This model features a 24 V DC coil, two normally open and two normally closed contacts, and screw terminals for straightforward wiring. By combining compact form with ABB reliability, you gain faster installation, reduced panel footprint, and lower maintenance costs over the life of the system.
Product Information
Extended Description
GJL1313501R0001 ABB: The BC7-22-00 mini contactor is a compact 4 pole contactor with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A (AC-1) or switching of control signals. Further features are the noiseless and hum-free coil, a switch position indication and the integrated possibility for rail or wall mounting.
