M125320000
Part Number: M125320000
Product Information
Extended Description

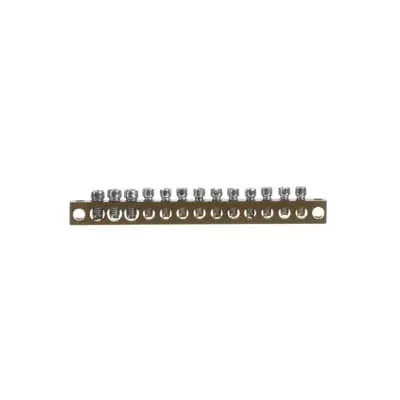

M125320000 ABB: Terminals for consumer units - Terminal bars - 10 holes diam. 4.5 mm and 3 holes diam. 5.6 mm
Suitable For
IP65 junction boxes in polycarbonate
Rated Voltage (Ur)
400 V
Rated Current (In)
63 A
Number of Line Terminals
15
Accessory Type
terminals
Mounting Type
Other
Terminal Connection Type
N/PE Terminal
Insulation Material
Other
Material
Brass
Color
Other
Rated Cross-Section
1 - Solid-Core 16...25 mm² | 2 - Fine-Strand with Cable End Sleeve 16...25 mm² | 3 - Fine-Strand without Cable End Sleeve 16...25 mm² | 4 - Multi-Wired 16...25 mm²
Terminal Type
Terminal Bar
REACH Declaration
REACh Regulation Enclosures - ABB S.p.A. Vittuone
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240429
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Depth / Length
13 mm
Product Net Weight
0.053 kg
Package Level 1 Units
box 20 piece
Package Level 1 Gross Weight
0.053 kg
Data Sheet, Technical Information
1SLC001001D0202
ETIM 8
EC001284 - Single- and multi-pole terminal strip
ETIM 9
EC001284 - Single- and multi-pole terminal strip
eClass
V11.0 : 27141106
