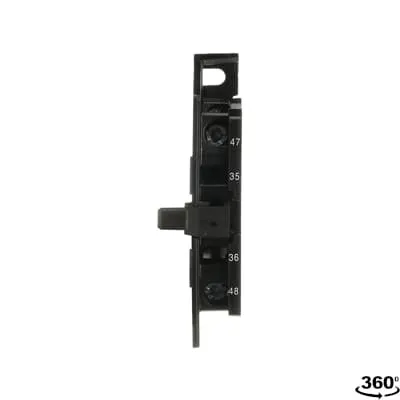

ABB SK829002-E Auxiliary Contact Block - CE IP20
Part Number: SK829002-E
Quick Summary
ABB SK829002-E Auxiliary Contact Block is a compact add-on that provides one normally open and one normally closed contact for ABB coil devices in control circuits and motor starters. This accessory helps simplify logic wiring and expands protection schemes without a bulky footprint. A key challenge in control panels is maintaining inventory and ensuring compatibility across diverse coil families; this block is designed to integrate with EH and EK coil ranges, supporting fast upgrades. The product carries CE and UKCA conformity and RoHS compliance, along with CMRT and CCC declarations, increasing regulatory confidence in panel builds. By standardizing on this block, maintenance teams reduce spare part variance while engineers gain predictable performance for automation sequences.
Product Information
Extended Description
SK829002-E ABB: CCL16-11E Auxiliary Contact Block, with 1 N.O. and 1 N.C.
Country of Origin
Sweden (SE)
Lead Time
0 day
Product Availability Class
Price is valid until the current stock lasts. This item belongs to a product which is in the obsolete phase and no longer available. Please contact local product sales in order to find a replacing product
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USSVCEXPU
Warranty Return
Product under warranty must be returned
Minimum Order Quantity
1 piece
Customs Tariff Number
85369001
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
5309660-8Y
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
65 mm
Product Net Depth / Length
15 mm
Product Net Height
70 mm
Product Net Weight
0.05 kg
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
Suitable For
EH175 | EH210 | EH260 | EH300 | EH370 | EH450 | EH550 | EH700 | EH800 | EH1200 | EK110 | EK150 | EK175 | EK210 | EK370 | EK550 | EK1000
Product Name
Auxiliary Contact Block
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CQC Certificate
CQC Certificate, Auxiliary Contact, CCL16-11E, Made in India
Declaration of Conformity - CCC
CCC Declaration of Conformity, Auxiliary Contact, CCL16-11E, Made in India
Declaration of Conformity - CE
CE Declaration of Conformity - Auxiliary contact - CAL16, CCL16, CAL18, CEL18, CAL19, CEL19
Declaration of Conformity - UKCA
UK Declaration of Conformity - Auxiliary contact blocks
Package Level 1 Units
box 1 piece
Package Level 1 Width
65 mm
Package Level 1 Depth / Length
70 mm
Package Level 1 Height
15 mm
Package Level 1 Gross Weight
0.07 kg
Package Level 1 EAN
7320500018712
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
Feature: Compact block with one normally open and one normally closed contact; Business Impact: Enables expanded control logic without increasing panel footprint, reducing enclosure crowding and wiring complexity; Application: Motor starters and protection circuits where space is at a premium. Feature: Dimensions 65 mm width, 70 mm height, 15 mm depth; Business Impact: Facilitates fast retrofits and straightforward labeling in retrofit projects; Application: Standard DIN rail installations and panel modernization. Feature: IP20 coil terminals; Business Impact: Safer indoor wiring and easier maintenance with standard panel environments; Application: Control panels in factory environments. Feature: RoHS, CE, UKCA, CMRT, CCC compliance; Business Impact: Accelerates regulatory acceptance and simplifies supplier onboarding; Application: Aerospace-grade panel builds or regulated manufacturing lines. Feature: Compatibility with EH175–EK1000 coil ranges; Business Impact: Reduces part diversity, speeds procurement, and lowers training overhead; Application: ABB control systems across multiple line formats. Feature: Availability notes (SELOGR 0 day lead time; USINY 35 day lead time; 1 piece MOQ); Business Impact: Clear planning for engineers and procurement to avoid unexpected downtime; Application: Global rollouts and regional sourcing strategies. Feature: Data resources (Data Sheet 1SBC100214C0202, CAD files); Business Impact: Improves engineering accuracy and reduces design iteration time; Application: System integration and CAD-driven design workflows.
Get a Quick Quote for a ABB SK829002-E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB SK829002-E?
Enquire Now
FAQs
Power down the system, verify compatibility with the EH or EK coil family, and mount the block onto the designated mounting interface. Connect the one normally open and one normally closed contact according to the control schematic, ensure IP20 terminals are properly crimped, and re-check wiring for correct polarity and clear labeling before energizing the circuit.
The SK829002-E is designed for ABB coil ranges including EH175, EH210, EH260, EH300, EH370, EH450, EH550, EH700, EH800, EH1200, EK110, EK150, EK175, EK210, EK370, EK550, and EK1000. Always consult the current ABB compatibility matrix and datasheet to confirm exact pairing for your module revision.
Yes. The auxiliary contact block carries CE conformity and RoHS compliance, with UKCA declarations where applicable. Additional CMRT and CCC declarations are provided to support supply-chain and regulatory needs in diverse regions, helping with audits and panel approvals.
The product net dimensions are 65 mm in width, 70 mm in height, and 15 mm in depth, with a net weight of about 0.05 kg. This compact footprint fits standard control panels and permits straightforward mounting alongside other ABB accessories.
Using a standardized auxiliary contact block reduces spare parts variety, simplifies procurement with a single SKU, and lowers maintenance errors by ensuring consistent contact logic. Compatibility with EH/EK coils streamlines retrofits, while RoHS/CE/UKCA compliance supports faster approvals and long-term reliability in automated lines.
