ABB TS4000 Control and Automation Board - IS2
Part Number: TS4000
Quick Summary
ABB TS4000 control and automation board offers a robust, enclosure-ready solution for control panels in automated manufacturing lines. Engineers often struggle with space constraints, complex cable routing, and lengthy commissioning when integrating modular enclosures. This solution aligns with CE conformity, RoHS compliance, and REACH declarations to help mitigate regulatory risk in global supply chains. By pairing a pre-assembled mounting kit with flexible reference depths and 16 sections for accessories, it accelerates installation, reduces wiring errors, and supports scalable plant upgrades. In addition, IS2 enclosure compatibility delivers consistent performance across changing automation architectures, delivering tangible business value through faster time-to-value and predictable maintenance costs.
Product Information
Extended Description

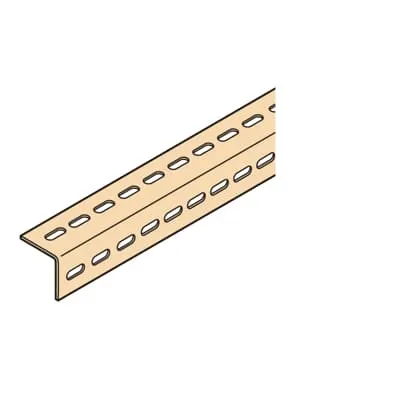

TS4000 ABB: N°2 cable rails W=600mm
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
15. Distribution and earthing system
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Pickled steel sheet
Options Provided
16. Sections for accessories
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
600 mm
Product Net Height
50 mm
Product Net Depth / Length
50 mm
Product Net Weight
1.470 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.470 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
IS2 enclosure compatibility with the TS4000 is designed to streamline panel builds. By delivering a mounting kit ready to install, engineers reduce assembly time and minimize misalignment during start-up. This translates into faster line bring-up and lower commissioning risk in automation projects. The material, pickled steel sheet, provides durable construction suitable for harsh manufacturing environments, limiting corrosion and extending service life while lowering replacement costs. The 16 accessory sections offer flexible internal layouts for wiring, sensors, and controllers, which reduces rework and enables rapid configuration changes as line requirements evolve. With a total weight of 1.470 kg and a package containing one piece, handling and installation are significantly simplified for on-site crews. The TS4000 also benefits from ROHS and REACH declarations, ensuring regulatory alignment across global sites and suppliers. Finally, the option to choose kit or pre-assembled mounting supports fast installation and minimizes field errors, delivering measurable time savings and improved project predictability.
Get a Quick Quote for a ABB TS4000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB TS4000?
Enquire Now
FAQs
To install TS4000, select the appropriate IS2 enclosure and use the provided mounting kit or opt for pre-assembled configuration. Secure the board to the enclosure rails, ensure the 16 accessory sections are properly aligned, and route cables through the designed cable rails (600 mm width option). Verify all connections, then perform a basic startup test to confirm proper operation and alignment with IS2 standards.
Key specs include a 600 mm product net width, 50 mm height, and 50 mm depth footprint, with a product weight of 1.470 kg. Reference depths are 300–1000 mm, and reference heights range from 1400–2200 mm. The enclosure is built from pickled steel sheet and is compatible with IS2 Enclosures for Automation, making it suitable for compact control cabinets.
Yes. The TS4000 is designed for IS2 enclosure systems used in automation, specifically targeting control and automation boards. Its kit or pre-assembled mounting approach, combined with flexible accessory options, supports scalable panel configurations for production lines, packaging equipment, and other automated systems.
The TS4000 includes a CE Declaration of Conformity and RoHS compliance, along with REACH declarations. It also references ETIM classifications for mounting accessories and maintains WEEE considerations, ensuring alignment with regulatory requirements across international markets.
The TS4000 delivers a strong ROI by reducing installation time through pre-assembled mounting options, minimizing wiring errors with organized accessory sections, and ensuring regulatory compliance to avoid compliance-related delays. Its modular, adaptable design supports future upgrades with minimal rework, lowering total cost of ownership over the system lifecycle.
