ABB TS4003 Control & Automation Board - Enclosures IS2
Part Number: TS4003
Quick Summary
ABB TS4003 is a control and automation board designed for IS2 enclosure-based automation projects. Engineers often grapple with integrating preassembled kits, aligning mounting footprints, and maintaining regulatory compliance in harsh industrial environments. This product carries CE conformity with a CE Declaration of Conformity, RoHS and REACH declarations, plus ETIM classification for mounting accessories. Pairing the TS4003 with IS2 Enclosures for Automation delivers installation simplicity and predictable performance, reducing assembly time and total cost.
Product Information
Extended Description

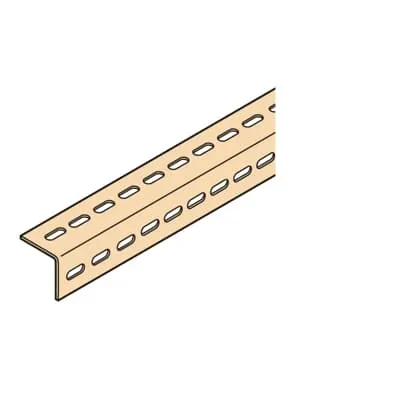

TS4003 ABB: N°2 cable rails W=1200mm
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
15. Distribution and earthing system
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Pickled steel sheet
Options Provided
16. Sections for accessories
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1200 mm
Product Net Height
50 mm
Product Net Depth / Length
50 mm
Product Net Weight
2 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.000 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature: Pre-assembled mounting kit supports fast deployment and minimizes field assembly errors. This translates to measurable time savings during panel builds and commissioning, reducing labor costs for system integrators. Application: Best used with IS2 Enclosures for Automation in machine controls and packaging lines. Business impact: Accelerated project timelines and lower risk of misalignment. The TS4003’s mounting kit supports scalable configurations with 16 sections for accessories, enabling quick reconfiguration as future needs arise. This improves maintenance agility and spare-part planning, reducing downtime and inventory complexity.
Get a Quick Quote for a ABB TS4003
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB TS4003?
Enquire Now
FAQs
Yes. TS4003 is specified for IS2 Enclosures for Automation and uses a pre-assembled mounting kit, which simplifies integration. It aligns with the IS2 accessory framework and references the 1STM604121R0006 installation manual to ensure correct mounting and wiring. This compatibility reduces engineering adjustments and shortens commissioning time.
Key dimensions include Product Net Width 1200 mm, Product Net Height 50 mm, and Product Net Depth 50 mm, with reference Depth/Length options from 300 to 1000 mm and Height options from 1400 to 2200 mm. The unit weighs 2 kg and ships as a single piece, facilitating straightforward handling and installation in compact control panels.
TS4003 is well-suited for manufacturing automation projects requiring robust mounting within IS2 Enclosures for Automation. It supports process automation, packaging lines, and general machine control cabinets, offering a modular approach with 16 accessory sections to accommodate future expansion and evolving control architectures.
TS4003 carries CE conformity with a Declaration of Conformity IS2, along with RoHS and REACH declarations. It is categorized under ETIM mounting accessories and aligned with environmental and safety standards to support regulatory compliance across multiple regions.
Documentation includes IS2 Enclosures Technical Catalogue 2024 and Instructions and Manuals 1STM604121R0006, aiding fast setup. The pre-assembled kit, combined with 16 accessory sections, reduces labor costs, shortens project timelines, and lowers total cost of ownership by simplifying maintenance and future reconfigurations.
