ABB TU1000 Control and Automation Board - CE Compliance
Part Number: TU1000
Quick Summary
ABB TU1000 control and automation board is designed for modular industrial control cabinets and power distribution panels. Engineers often struggle with space constraints, mismatched components, and lengthy installation cycles that delay projects. The TU1000 addresses these challenges with pre-assembled mounting kits, configurable reference depths and heights, and robust metal construction. It is compatible with Modular boards – System pro E Power and is suitable for Main Distribution Boards, helping to consolidate control hardware in a single, scalable enclosure. The solution carries CE conformity, RoHS II compliance, and a REACH declaration, ensuring regulatory alignment across European operations. By combining reliability with easy installation and future-ready expandability, TU1000 delivers reduced lead times, lower lifecycle costs, and smoother upgrades for growing automation needs.
Product Information
Extended Description

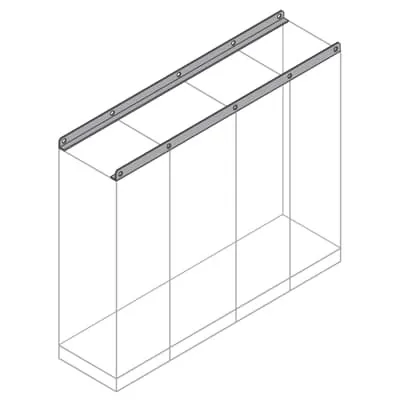

TU1000 ABB: N.2 Structure Rails Unit Of Meas.=Mt Is2
Sub-Function 3
Rails
Suitable For
Modular boards - System pro E Power
Suitable for Product Class
Main Distribution Boards
Accessory Type
21. Accessories
Mounting Type
Kit | Pre assembled
Product Type
5P5P80P8090
Material
Metal
Options Provided
10. Lifting beams
Remarks
ETIM
Color
Grey
RoHS Information
LB-DT 19-21D - RoHS II - Enclosures
RoHS Date
20140108
REACH Declaration
1SDL000282R1279 - REACh - Enclosures
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024 | Breakers - Packaging disposal information
Product Net Width
80 mm
Product Net Height
100 mm
Product Net Depth / Length
1000 mm
Product Net Weight
15.16 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
15.166 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
IS2 instruction handbook 2024
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002621 - Components for transport (enclosure/cabinet)
ETIM 9
EC002621 - Components for transport (enclosure/cabinet)
eClass
V11.1 : 27182812
Object Classification Code
U
Standards
See code for structure
Feature: Mounting Type Kit and pre-assembled design enable faster, error-free panel assembly. Business Impact: Reduces field installation time, labor costs, and commissioning risk, delivering faster time-to-production for new lines or retrofit projects. Application: Ideal for modular control cabinets in manufacturing plants where rapid panel changes support continuous improvement and uptime. Feature: Compatibility with System pro E Power modular boards ensures seamless integration. Business Impact: Minimizes integration risk by aligning with existing architectures, improving spare-part planning and lifecycle management. Application: Suitable for Main Distribution Boards in electrical substations and heavy manufacturing facilities seeking scalable control architectures. Feature: Metal enclosure with grey finish and regulatory compliance. Business Impact: Enhances durability in harsh environments, reduces regulatory overhead, and supports sustainable disposal. Application: Enclosures in IS2 Enclosures Technical Catalogue contexts, with RoHS II compliance and REACH declarations aiding audits. Feature: Flexible dimensions and weight for layout optimization. Business Impact: Enables space-efficient installations across depths from 300 to 1000 mm and heights from 1400 to 2200 mm, aiding future expansions. Application: Ideal for plant-wide control panels and modular boards where upgrading footprint matters. Feature: Lifting beams option and mounting versatility. Business Impact: Improves installation ergonomics and reduces handling risk during assembly or retrofit. Application: Relevant for on-site service work and multi-frame configurations in high-grade facilities.
Get a Quick Quote for a ABB TU1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB TU1000?
Enquire Now
FAQs
The TU1000 ships with mounting kits designed for quick, pre-assembled installation. It integrates directly with System pro E Power modular boards, aligning with Main Distribution Boards and standard enclosure rails. Its configurable depths and heights simplify retrofits and new builds, reducing on-site assembly errors and accelerating commissioning.
Key specs include metal enclosure construction, grey finish, 80 mm net width, 1000 mm net depth, and a 15.16 kg net weight. Compliance indicators CE, RoHS II, and REACH support regulatory alignment. Reference depths and heights (300–1000 mm and 1400–2200 mm respectively) provide flexible space planning for diverse distribution configurations.
Yes. TU1000 is suited for modular control cabinets in manufacturing plants, energy management, and distribution upgrades. Its compatibility with System pro E Power, anti-corrosion metal enclosure, and IS2 catalogue alignment make it ideal for Main Distribution Boards and scalable automation layouts in harsh or regulated environments.
TU1000 carries CE conformity, RoHS II compliance (LB-DT 19-21D), and a REACH declaration (1SDL000282R1279). These certifications simplify regulatory reviews, support audit readiness, and help ensure safe, compliant operation in European facilities and global supply chains.
The metal enclosure and pre-assembled mounting reduce field maintenance and commissioning time, lowering labor costs and downtime. Regulatory compliance minimizes rework during inspections. Its scalable dimensions support future expansions without full cabinet replacements, delivering long-term lifecycle cost savings and improved return on investment.
