VS4235K
Part Number: VS4235K
Product Information
Extended Description

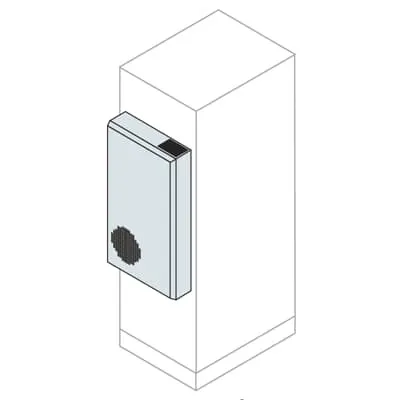

VS4235K ABB: Wall mounting 710x370x130mm (HxWxD) Power supply 230V AC
Sub-Function 3
Heat exchangers
Sub-Function 4
35 W
Suitable For
Modular boards - System pro E Power
Suitable for Product Class
Main Distribution Boards
Nominal AC Voltage of the System (Uo)
230 V
Input Voltage Type
AC
Accessory Type
17. Temperature management
Mounting Type
Kit | Pre assembled
Product Type
5P5P80P8090
Material
Pickled steel sheet
Options Provided
10. IP54 heat exchangers (air-air) for wall mounting
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
LB-DT 19-21D - RoHS II - Enclosures
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20231024
REACH Declaration
1SDL000282R1279 - REACh - Enclosures
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20241125
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
acc. to IEC 60529 IP54
Environmental Information
IS2 Enclosures Technical Catalogue 2024 | Breakers - Packaging disposal information
Product Net Width
318 mm
Product Net Height
86 mm
Product Net Depth / Length
0.130 mm
Product Net Weight
9.80 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
10.000 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000737 - Heating (enclosure/cabinet)
ETIM 9
EC000737 - Heating (enclosure/cabinet)
eClass
V11.1 : 27180710
Object Classification Code
U
Standards
See code for structure
