ABB ZN0006 Control and Automation Board - IS2 Enclosures CE
Part Number: ZN0006
Quick Summary
ABB ZN0006 Control and Automation Board is designed to streamline automation in IS2 enclosure environments. Engineers often struggle with mounting complexity and time-consuming cabinet integration, especially when adding new control elements to existing frames. With CE conformity, RoHS compliance dated 20250108, and REACH declarations, this solution helps meet regulatory and sustainability targets. As a compact, pre-assembled kit for IS2 enclosures, it reduces installation steps while remaining compatible with standard automation components and cabinet accessories, delivering faster deployment and predictable performance for automation projects.
Product Information
Extended Description

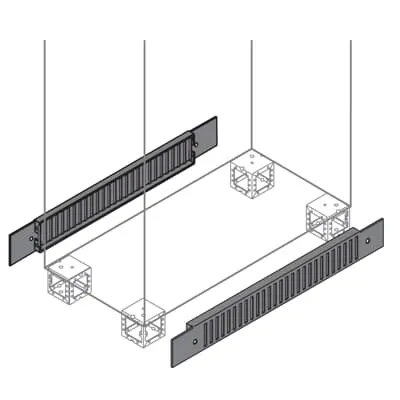

ZN0006 ABB: N.2 vent.plinth flanges 100x600mm (HXW)
Sub-Function 3
Base front/back
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
6. Flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B330
Material
Pickled steel sheet with pre-cuts
Options Provided
Aerated flanges front/back H=100 mm
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
115 mm
Product Net Height
100 mm
Product Net Depth / Length
630 mm
Product Net Weight
1.8940 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.084 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.1 : 27182003
Standards
See code for structure
Feature: IS2 enclosure compatibility and base/front-back sub-function for stable mounting. Benefit: Ensures reliable enclosure integration and supports modular expansion, reducing rework. Application: Use in automation panels for process control and machine automation. Feature: Pickled steel sheet with pre-cuts for the frame. Benefit: Lower fabrication time and material waste, enabling quicker assembly and cost control. Application: CAB/ enclosure frame construction in harsh industrial environments. Feature: Mounting Type Kit | Pre assembled. Benefit: Fast, tool-light installation and straightforward retrofits, minimizing现场 downtime. Application: New builds and upgrade projects in production lines. Feature: 6 Flanges accessory with Aerated front/back H=100 mm. Benefit: Enhanced ventilation and access for maintenance, improving reliability. Application: Control cabinet ventilation and service access in IS2 systems. Feature: Dimensions and Net Weight (Product Net Width 115 mm, Net Height 100 mm, Net Depth 630 mm; 1.8940 kg). Benefit: Accurate planning for space, cable routing, and weight distribution in cabinets. Application: System layout and structural analysis for automation enclosures. Certification and compliance: RoHS Information, RoHS Date 20250108, REACH Declaration, REACH Information (False >0.1%), REACH Date 20250108, WEEE Category Product Not in WEEE Scope, CE Declaration. Benefit: Regulatory alignment and sustainable design. Application: OEMs and integrators focused on compliance and end-of-life planning.
Get a Quick Quote for a ABB ZN0006
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ZN0006?
Enquire Now
FAQs
ZN0006 is designed specifically for IS2 Enclosures for Automation, enabling a seamless fit with the IS2 cabinet system. It ships as a mounting kit that is pre-assembled, with a base/front-back configuration and a 6-flange accessory option, allowing quick installation, flexible positioning, and straightforward future upgrades without disassembly of major components.
The board provides a net footprint of 115 mm width and 100 mm height with a net depth of 630 mm. The external footprint referred in the product line includes broader mounting references for IS2 integration (depths from 300 to 1000 mm and heights from 1400 to 2200 mm). The unit weight is approximately 1.8940 kg, aiding accurate space planning and load calculations.
ZN0006 carries CE conformity with a Declaration of Conformity IS2, RoHS information dated 20250108, and REACH declarations, including a REACH date of 20250108. WEEE categorization notes the product is not in WEEE scope. This helps satisfy regulatory requirements for European markets and supports sustainable product stewardship.
The kit includes a pre-assembled mounting solution with six flanges and optional aerated front/back configurations, reducing field assembly time and wiring complexity. The material is pickled steel with pre-cuts, simplifying frame assembly and ensuring durable serviceability, while the IS2 compatibility minimizes part-compatibility checks during commissioning.
By enabling faster cabinet integration and reducing installation steps, ZN0006 lowers labor costs and minimizes downtime during retrofits or upgrades. The RoHS/REACH compliance and CE conformity help avoid regulatory delays, while the robust steel construction extends cabinet life, providing long-term reliability and predictable maintenance planning for automation projects.
